Highlight
The Force XPLR crankset is a light and stiff direct mount chainring with refined, elegant crank arms, plus updated, lighter 1x chainrings. Offered in 38T-46T standard chainring sizes and 44T-50T with aero rings, this crank can do it all and looks great doing it.
FEATURES
- Single-ring drivetrain simplifies functionality and reduces weight

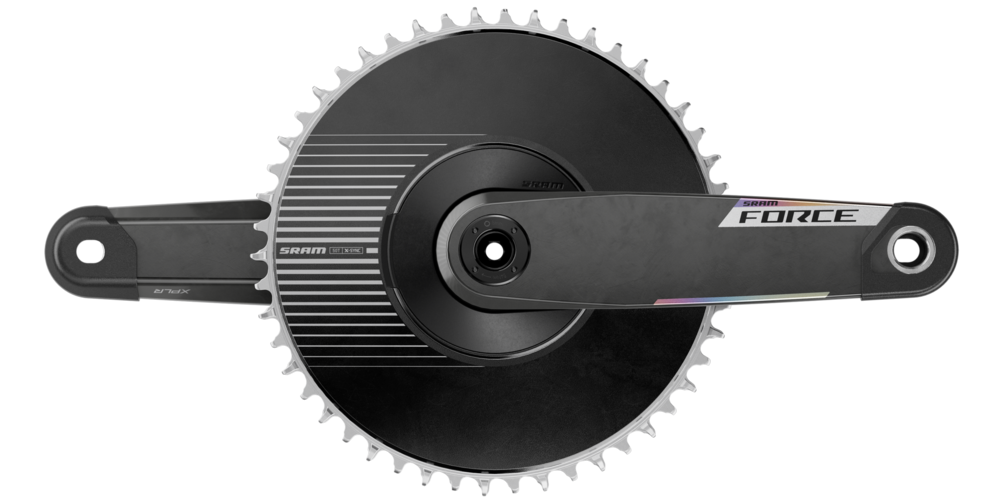

- Direct mount aero chainrings for better aerodynamics
- X-SYNC wide-tooth, narrow-tooth chainring technology provides maximum chain control
- DUB bottom bracket adds durability and simplicity
- Can be upgraded to a power meter
- Available in 160,165, 170, 172.5 and 175mm crankarm lengths
- Lightweight
- Use with XPLR derailleurs on bikes with chainstay lengths down to 415 mm. Road cranksets should be used with chainstay lengths 414mm and below
SPECIFICATIONS
Model ID: FC-FRC-1W-E1
| Speeds | 12, 13 |
|---|---|
| BB Compatibility | All SRAM Road WIDE DUB BBs |
| Chainring Size | 42T Standard Chainring in 38, 40, 44 & 46T sold separately. Aero Chainring in 44, 46, 48 & 50T sold separately. |
| Crank arm length | 160mm, 165mm, 170mm, 172.5mm, 175mm |
| Chainline | 47.5mm |
| BB Spindle Interface | DUB |
| Chainring material | Aluminum |
| Bolt Circle Diameter (BCD) | Direct Mount (DM) |
| Power meter | No |
| Power Meter Type | n/a |
| Bottom Bracket Technology | DUB |
| Chainring Offset | 6.5mm |
| Cranksets Type | Road Wide |
| Chain Technology | Eagle, Road Flattop D1/E1, T-Type |
| Drivetrain Configuration | 1x |
| Technology (FD) | n/a |
| Front Tooth Jump | 0 |
| Chainring Mount Interface | 8-Bolt |
