DESCRIPTION

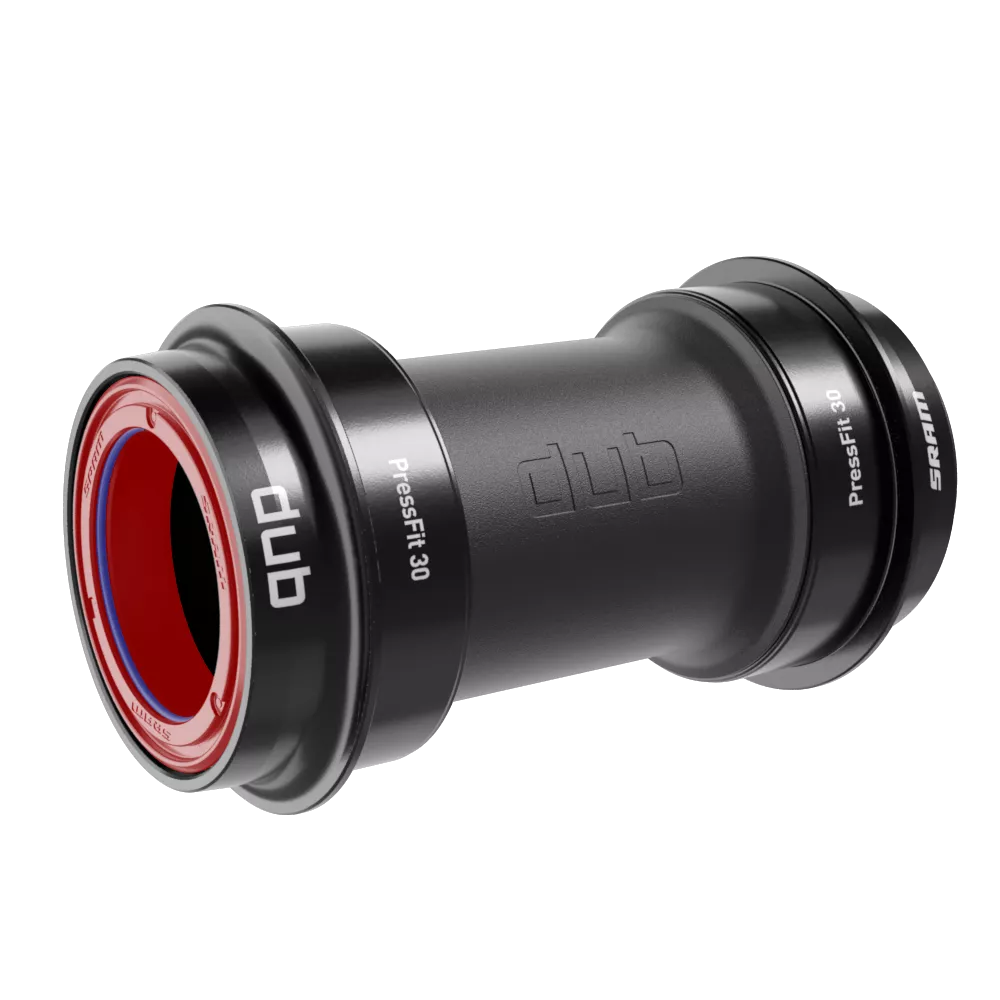

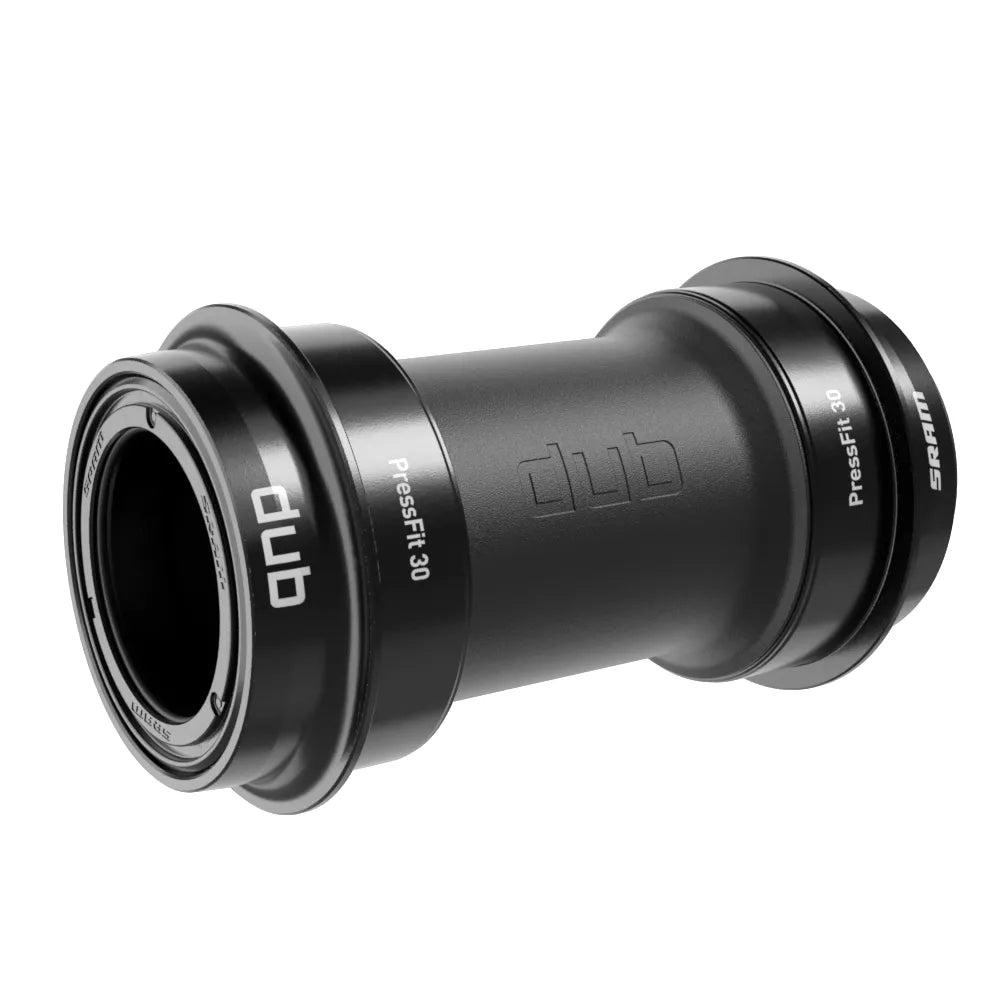

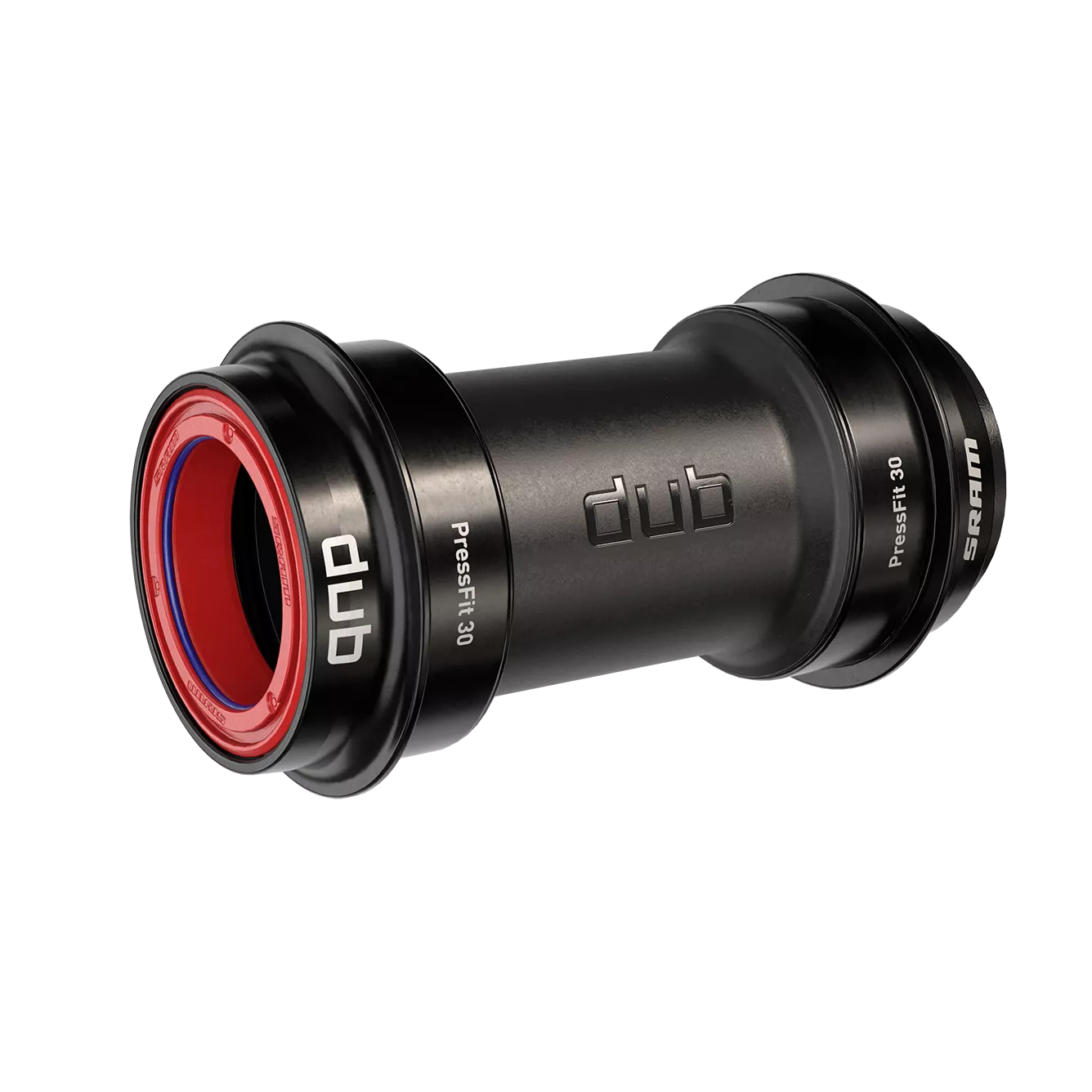

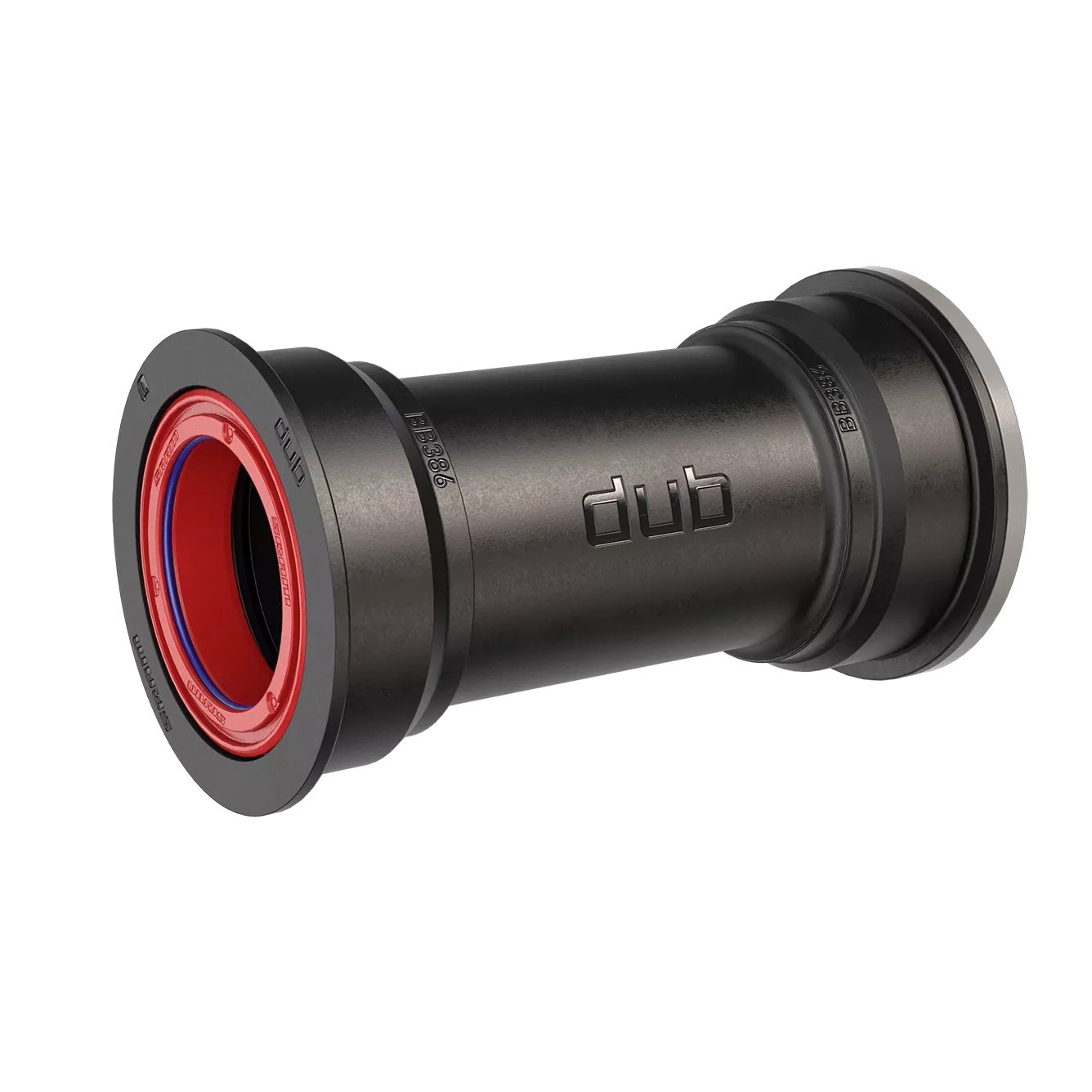

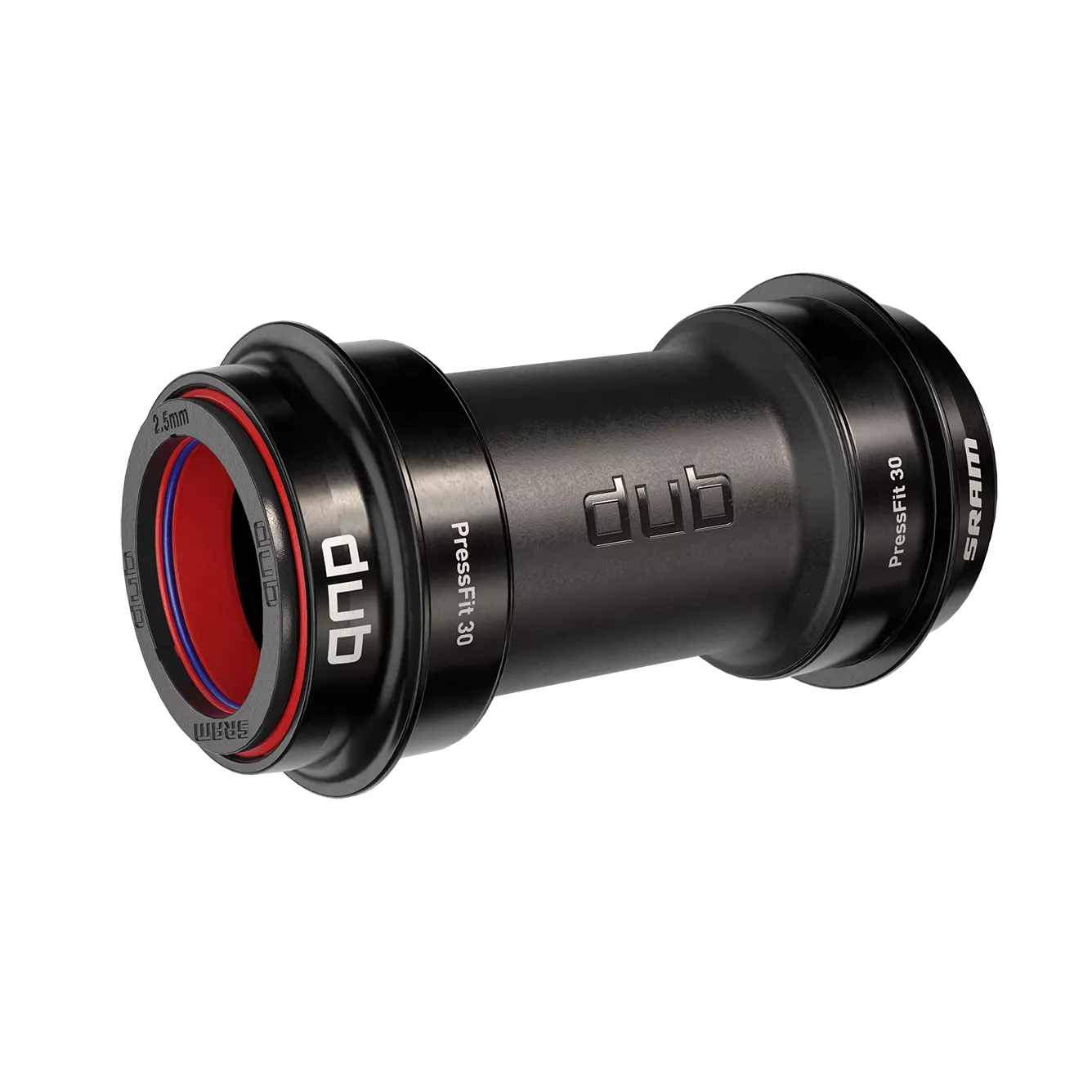

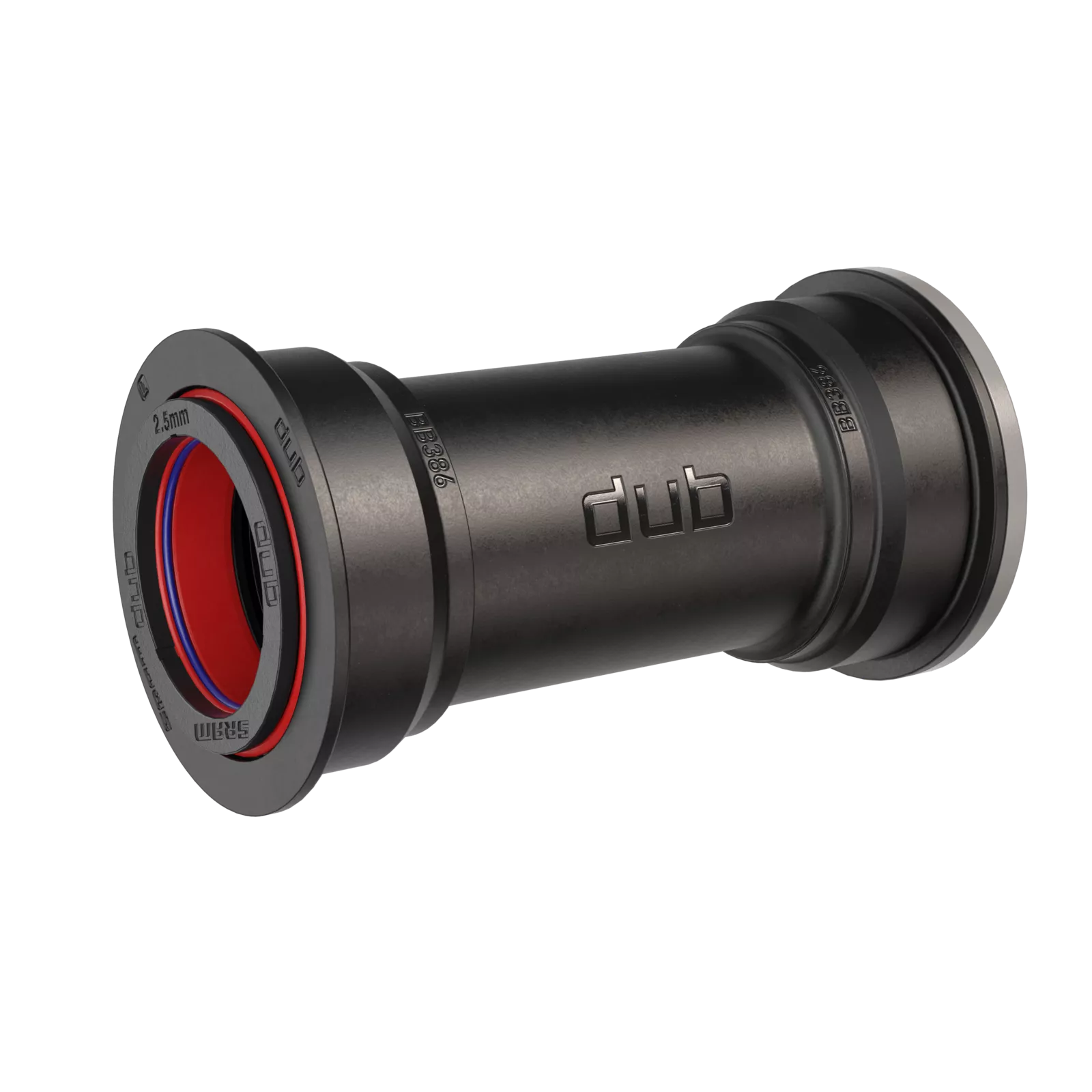

The SRAM DUB bottom bracket series has a simple job—connect your crankarms and protect the smooth, long-lasting application of power to your drivetrain. To allow that singular focus, we've engineered the DUB spindle to be the one true unifying component. One oversized spindle to work across every bottom bracket specification. For better crankarm compatibility. For better protection from the elements. For longer-lasting performance. To be stronger, smoother, simpler. Now, back to the ride.
FEATURES
- One oversized spindle to work across every bottom bracket specification.
- Easy installation
- PressFit cups for lighter weight
- Sealed cartridge bearings available in both stainless and ceramic versions
SPECIFICATIONS
| Bearing type | Ceramic, Standard |
|---|---|
| Spindle diameter | DUB |
| Spindle length | n/a |
| Chainline | 45.0mm, 47.5mm, 49.0mm, 51.0mm, 52.0mm, 55.0mm, 56.5mm, 66.5mm, 76.5mm |
| Support E-type FD | n/a |
| Cup material | Aluminum |
| Bottom Bracket Technology | DUB |
| Cranksets Type | DH, FAT, MTB, MTB Cannondale Ai, MTB Wide, Road, Road Cannondale Ai, Road Wide |
| Bottom Bracket Shell Type | BB386 86.5, BBRight, PF30 100, PF30 68, PF30 73, PF30 83 |
