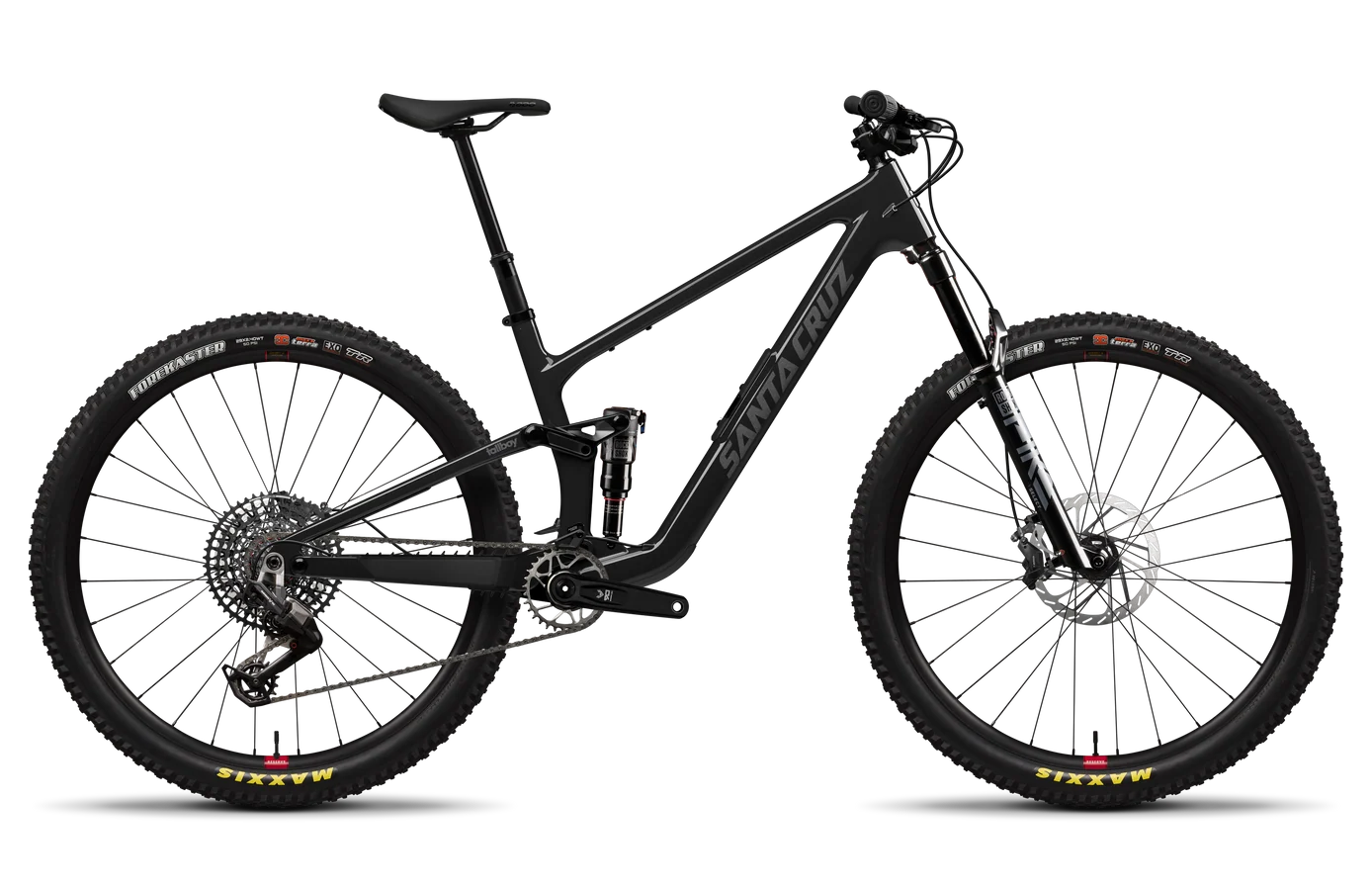

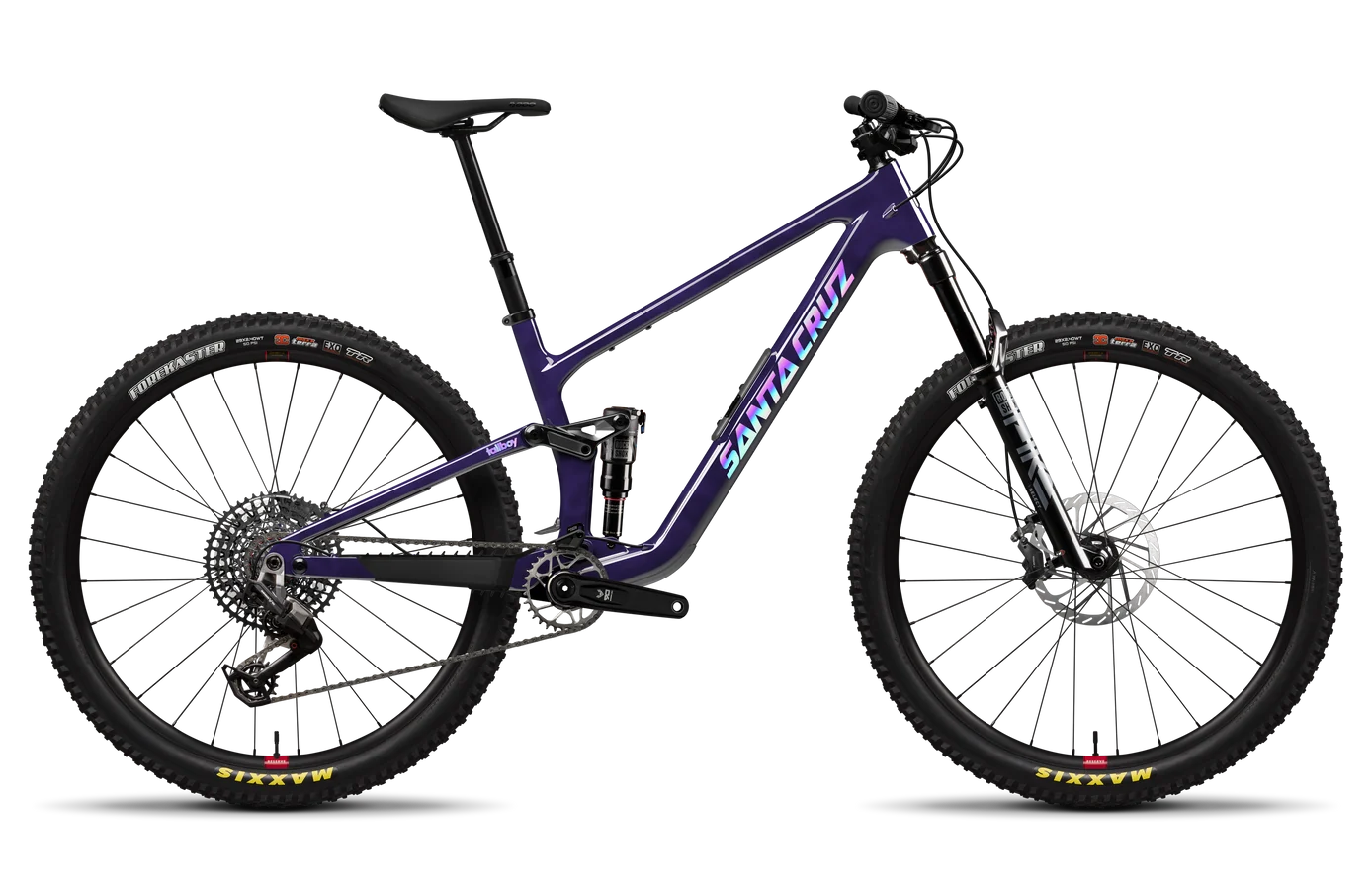

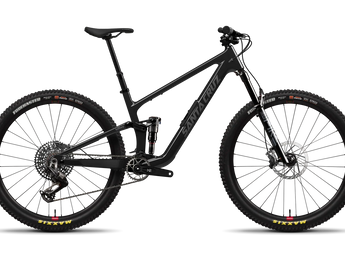

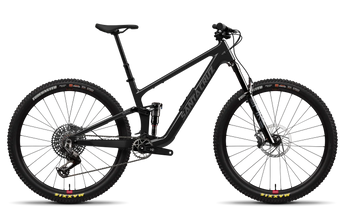

SANTA CRUZ TALLBOY CC 90 (6TH GEN)

The Tallboy is a short-travel bike with long legs. Our perennial 29-inch bike has gone on a diet and bulked up the amount of travel to fit the kind of rider looking to maximize power hours or just ride all the hours. It’s light and efficient enough to climb with the best of them, yet punches way above its weight class as soon as the trail turns down. Excellent suspension, big wheels, thoroughly-tuned carbon layup and rock-solid reliability let you go as hard as you want.

SPECIFICATIONS

• Sizes
  M, L, XL
• Colors
  Gloss Carbon, Gloss Midnight Violet
• Frame
  Carbon CC 29" 130mm Travel 4-Bar

• Travel
  130mm
• Shock
  RockShox Deluxe, 185x50mm Trunnion
• Wheel Size
  29"
• Weight
  30.79 lbs / 13.97 kg

• Bottom Bracket
  73mm Threaded
• Rear Brake Mount
  Postmount 180mm

• Chainguide Standard
  Integrated upper guide
• Chainline
  55
• Derailleur Hanger
  SRAM UDH
• Downtube Storage
  Glovebox
• Shock Length
  185x50mm Trunnion
• Fork Axle to Crown
  554mm
• Fork Compatibility
  140-150mm
• Fork Offset
  44mm
• Headset
  Integrated (IS41/52)
• Max Chainring Size
  34T
• Max Rotor Size
  203mm
• Max Tyre Clearance
  2.4"
• Rear Spacing
  148x12mm
• Rear Travel
  130mm, recommended sag 30%
• Seat Clamp Diameter
  36.4mm
• Seat Post Diameter
  31.6mm
• Water Bottle Mount
  1

Suspension

• Fork
  RockShox Pike Select, 140mm

• Shock
  RockShox Deluxe Select+, 185x50


Drivetrain

• Bottom Bracket
  SRAM DUB 68/73mm Threaded BB

• Cassette
  SRAM XS 1275 Eagle T-Type, 10-52t

• Chain
  SRAM GX Eagle T-Type, Flattop, 12spd

• Chainguide
  OneUp Chainguide
• Crankset
  SRAM 90 Eagle DUB T-Type, 32T
  XS-S: 165mm, M-XXL: 170mm
• Rear Derailleur
  SRAM 90 Eagle T-Type, 12spd

• Right Shifter
  SRAM 90 Eagle T-Type, 12spd


Brakes

• Brakes
  SRAM DB8

• Rotor
  Front & Rear: SRAM HS2 180mm


Cockpit

• Grips
  Santa Cruz Bicycles House Grips
• Handlebar
  OneUp Aluminum Bar, 35mm
  S: 760mm 20mm Rise
  M-XXL: 800mm 35mm Rise

• Headset
  Cane Creek 50 IS Integrated Headset

• Saddle
  SDG Bel-Air V3 Lux-Alloy

• Seatpost
  OneUp Dropper Post, 31.6
  S: 150mm, M: 180mm, L-XL: 210mm, XXL: 240mm

• Stem
  OneUp Enduro Stem All Sizes: 42mm


Wheels

• Front Rim
  Reserve 30|TR AL

• Front Hub
  DT Swiss 370, 15x110, 6-Bolt, 28h

• Front Tyre
  Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

• Rear Rim
  Reserve 30|TR AL

• Rear Hub
  DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h

• Rear Tyre
  Maxxis Forekaster 29"x2.4", MaxxTerra, EXO

• Valves
  Reserve Fillmore Valves


More info at Santa Cruz Talloy 6 CC 90 Complete Bike
