Santa Cruz

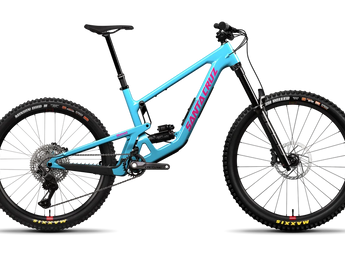

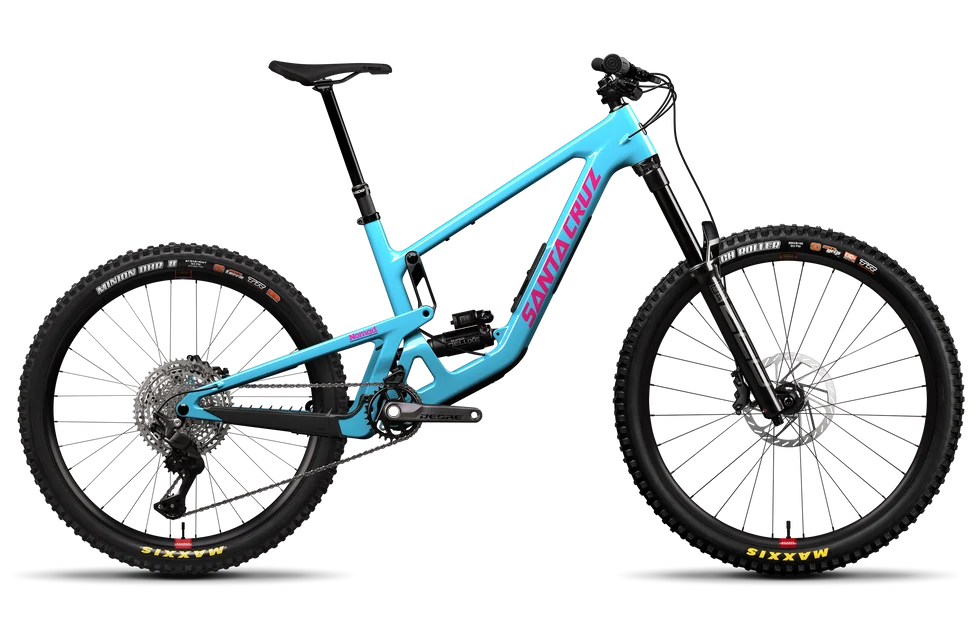

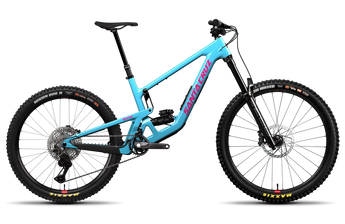

SANTA CRUZ NOMAD CC DEORE (7TH GEN)

$7,300.00 Sold out
New
Size: S
Color: Gloss Aqua Magenta
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size: S
Color: Gloss Aqua Magenta

Highlight

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

SPECIFICATIONS

Frame

  • Sizes
    S, M, L
  • Colors

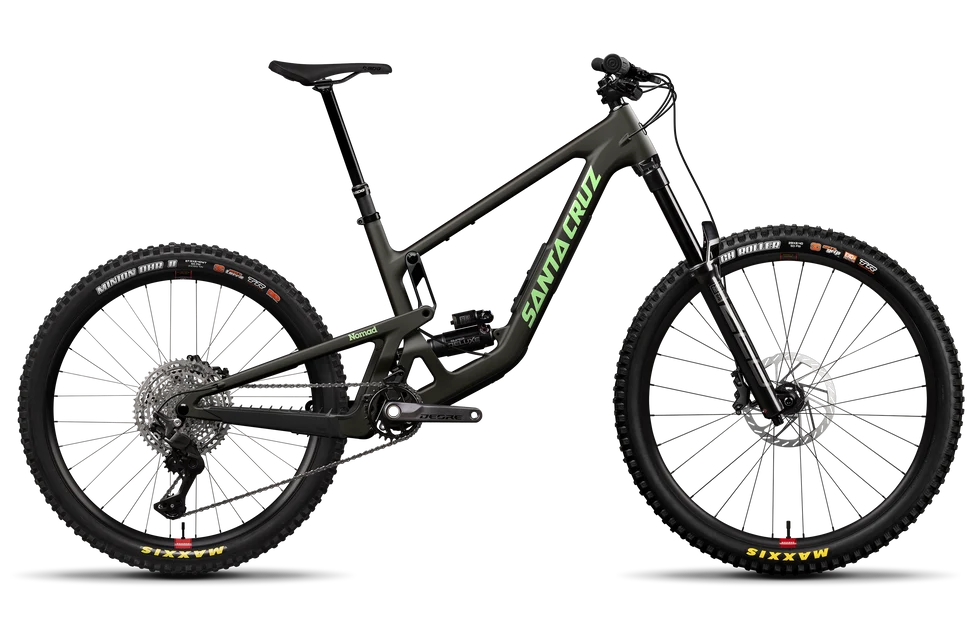

    Gloss Aqua Magenta, Matte Metallic Earth
  • Frame
    Carbon CC MX 170mm Travel VPP™
  • Wheel Size
    MX (29" front, 27.5" rear)
  • Weight
    35.63 lbs / 16.16 kg
  • Bottom Bracket Shell
    73mm threaded
  • Rear Brake Mount
    Postmount 200mm
  • Chainguide Standard
    Integrated upper guide+2-bolt ISCG 05 bash mount
  • Chainline
    55mm
  • Downtube Storage
    Glovebox
  • Fork Axle to Crown
    588mm
  • Fork Compatibility
    170-180mm
  • Fork Offset
    44mm
  • Headset
    Integrated (IS41/52)
  • Max Chainring Size
    36T
  • Max Rotor Size
    223mm
  • Rear Spacing
    148mm
  • Recommended Sag
    30%
  • Seat Clamp Diameter
    36.4mm
  • Seat Post Diameter
    31.6mm
  • Shock Bushing Size - Front
    30x8
  • Shock Bushing Size - Rear
    30x8
  • UDH Compatibility
    Yes
  • Water Bottle Mount
    1

Suspension

  • Fork
    RockShox Zeb Base, 170mm
  • Shock
    RockShox Super Deluxe Select, 230x65

Drivetrain

  • Bottom Bracket
    Shimano MT501 68/73mm Threaded
  • Cassette
    Shimano Deore M6200, 10-51t
  • Chain
    Shimano Deore M6100, 12spd
  • Chainguide
    OneUp Chainguide
  • Crankset
    Shimano Deore M6200, 32t
    S: 165mm, M-XXL: 170mm
  • Rear Derailleur
    Shimano Deore M7200, 12spd
  • Right Shifter
    Shimano Deore M6200, 12spd w/ Wolf Tooth Shiftmount Adapter for MM

Brakes

  • Brakes
    SRAM DB8
  • Rotor
    Front & Rear:
    SRAM Centerline, 200mm

Cockpit

  • Grips
    Santa Cruz Bicycles House Grips
  • Handlebar
    Burgtec Aluminum Bar, 35mm
    S: 760mm, 20mm Rise, M-XXL: 800mm, 30mm Rise
  • Headset
    FSA IS-2/47/42 ACB
  • Saddle
    SDG Bel-Air V3 Steel
  • Seatpost
    SDG Tellis Dropper, 31.6MM
    S: 125mm, M: 150mm, L: 170mm, XL-XXL: 200mm
  • Stem
    OneUp Enduro Stem
    All Sizes: 42mm

Wheels

  • Front Rim
    Reserve 30|TR AL
  • Front Hub
    Shimano TC500, 15x110, 6-Bolt
  • Front Tyre
    Maxxis High Roller, 29"x2.4", 3C MaxxGrip, EXO+
  • Rear Rim
    Reserve 30|HD AL
  • Rear Hub
    Shimano TC600, 12x148, MicroSpline, 6-Bolt
  • Rear Tyre
    Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, Double Down
  • Valves
    Reserve Fillmore Valves

More info at Santa Cruz Nomad 7 CC Deore Complete Bike

Sizing & Geometry

NOMAD FRAME

s m l xl xxl
Reach (Hi/Lo) 435/433 455/453 475/473 495/493 520/518
Stack (Hi/Lo) 624/626 633/635 643/645 660/662 669/671
Head Tube Angle (Hi/Lo) 63.6°/63.3° 63.6°/63.3° 63.6°/63.3° 63.6°/63.3° 63.6°/63.3°
Head Tube Length 100 110 120 140 150
Rear Center
(Hi/Lo)
 438/439 441/442 444/445 447/448 451/452
Front Center
(Hi/Lo)
 346/342.5 346/342.5 346/342.5 346/342.5 346/342.5
BB Height (Hi/Lo) 438/439 441/442 444/445 447/448 451/452
BB Drop Front (Hi/Lo) 26.5/30 26.5/30 26.5/30 26.5/30 26.5/30
BB Drop Rear (Hi/Lo) 8/11.5 8/11.5 8/11.5 8/11.5 8/11.5
Wheelbase
(Hi/Lo)
 1219/1219 1246/1247 1276/1274 1305/1306 1339/1339
Top Tube Length
(Hi/Lo)
 569/569 587/586 604/605 627/628 651/652
Seat Tube Length 380 400 420 450 500
Seat Tube Angle (Hi/Lo) 78°/77.7° 78.2°/78.1° 78.6°/78.4° 78.7°/78.5° 78.9°/78.7°
Seat Tube Angle at Saddle Height
(Hi/Lo)
 77.4/77.1 at 680 77.4/77.1 at 730 77.4/77.1 at 780 77.4/77.1 at 830 77.4/77.1 at 870
Standover Height
(Hi/Lo)
 711/707 719/715 722/718 726/722 732/728



All units are in millimeters or degrees.
