Santa Cruz

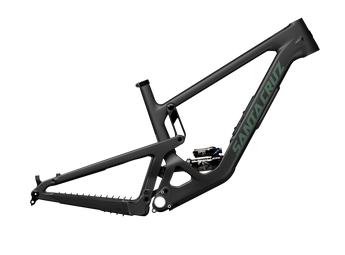

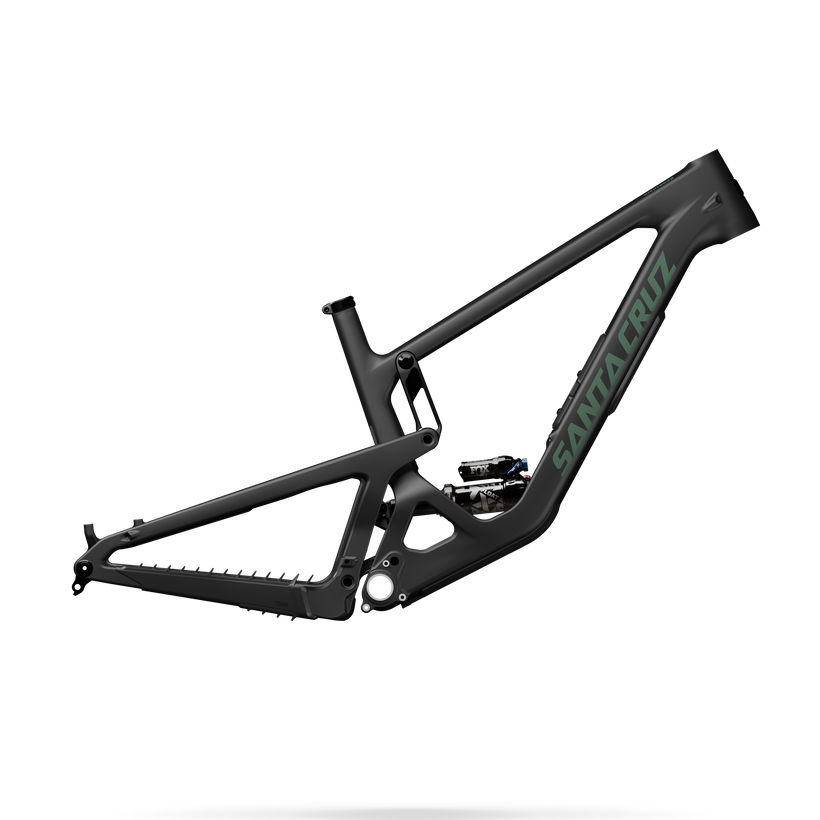

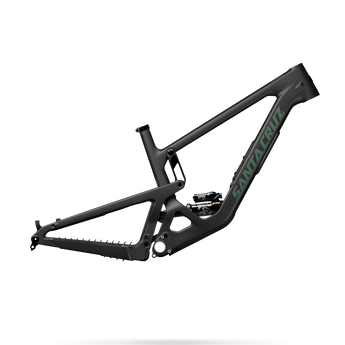

SANTA CRUZ HIGHTOWER C FRAMESET (4TH GEN)

$5,099.00 Sold out
New
Size: M
Color: Matte Black
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size: M
Color: Matte Black

Highlight

Big on wheels, short on fuss, this is the pinnacle of go-anywhere-anytime bikes. A balance of travel, wheel size and attitude make this a true MTB for modern mountain biking. Whether that includes the rarefied air of the alpine or just local trailheads, built and burly trails or sublime natural singletrack, the Hightower is an all-terrain thriller.

Hightower Frame 2026 ā€“ Santa Cruz Bicycles

SPECIFICATIONS
  • Sizes
    M, L
  • Colors
    Matte Black
  • Frame
    Carbon CC 29" 150mm Travel VPPā„¢
  • Material
    Carbon CC
  • Travel
    150mm
  • Shock
    FOX Float X Performance Elite, 230x57.5
  • Wheel Size
    29"
  • Weight
    -

Sizing & Geometry

HIGHTOWER CC FRAME

s m l xl xxl
Reach (Hi/Lo) 435/432 460/457 480/477 500/497 525/522
Stack (Hi/Lo) 623/625 632/634 641/643 659/661 668/670
Head Tube Angle (Hi/Lo) 64.2Ā°/63.9Ā° 64.2Ā°/63.9Ā° 64.2Ā°/63.9Ā° 64.2Ā°/63.9Ā° 64.2Ā°/63.9Ā°
Head Tube Length 110 120 130 150 160
Rear Center 434 436 439 442 445
Front Center 771 800 825 853 883
BB Height (Hi/Lo) 344/341 344/341 344/341 344/341 344/341
BB Drop Front (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
BB Drop Rear (Hi/Lo) 29/32 29/32 29/32 29/32 29/32
Wheelbase 1206 1237 1264 1296 1328
Top Tube Length 572 595 614 636 662
Seat Tube Length 380 405 430 460 500
Seat Tube Angle (Hi/Lo) 77.6Ā°/77.3Ā° 77.9Ā°/77.6Ā° 78.2Ā°/77.9Ā° 78.3Ā°/78Ā° 78.4Ā°/78.1Ā°
Standover Height 721 723 725 727 731

All units are in millimeters or degrees.
