Santa Cruz

SANTA CRUZ BLUR CC FRAMESET (5TH GEN)

$5,400.00 Sold out
New
Size: S

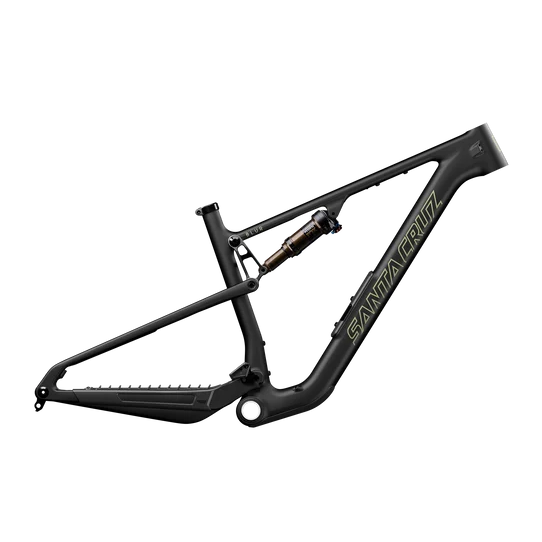

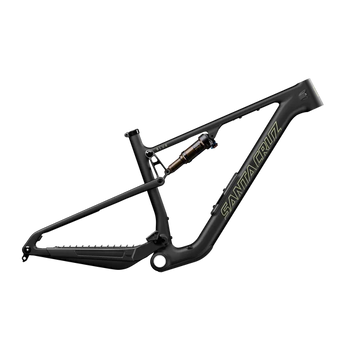

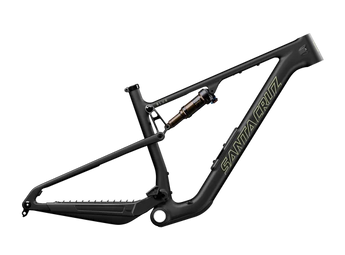

Color: Matte Charcoal
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size: S
Color: Matte Charcoal

Highlight

The new Blur is made for trails, whether you’re racing for podiums or hammering into the sunrise. The suspension, geometry, and chassis combine to deliver a platform capable of the top step—the rest is up to you. We bumped up the travel, updated the geometry, and spent a lot of time tweaking the suspension kinematics to encourage you to obliterate the boundaries of a traditional “XC bike.” The Blur is right at home sprinting for the hole shot, but it’s also a lightweight and immensely capable short-travel trail bike for the days between the races. Whether you're sprinting out of the gate or out of a corner, aiming for the horizon or the apex, the Blur takes XCO and injects some 'oh, hell yeah!' into every ride, Monday through Sunday.

SPECIFICATIONS
  • Sizes
    S,M
  • Colors

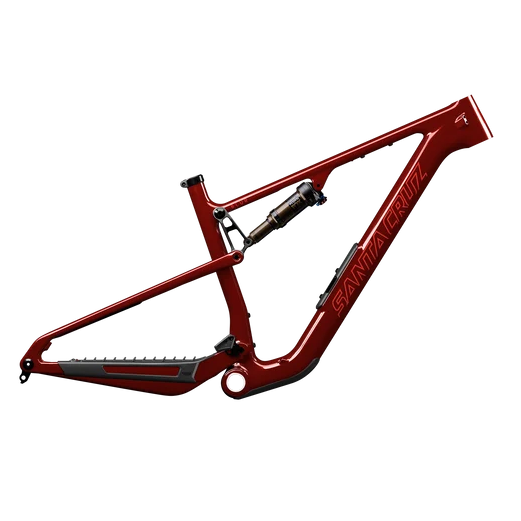

    Matte Charcoal, Gloss Tart Cherry
  • Frame
    Carbon CC
  • Travel
    120mm
  • Shock
    FOX Float SL Factory, 190x45
  • Wheel Size
    29"
  • Weight
    4.94 lbs / 2.24 kg

More info at Santa Cruz Blur 5 CC Frameset

Sizing & Geometry

BLUR FRAME

s m l xl
Reach (Hi/Lo) 425 450 475 500
Stack (Hi/Lo) 588 588 597 611
Head Tube Angle (Hi/Lo) 66° 66° 66° 66°
Head Tube Length 90 90 100 115
Rear Center
(Hi/Lo)
 433 435 437 439
Front Center
(Hi/Lo)
 718 743 772 803
BB Height (Hi/Lo) 334 334 334 334
BB Drop Front (Hi/Lo) 38.5 38.5 38.5 38.5
Wheelbase
(Hi/Lo)
 1151 1178 1209 1242
Top Tube Length
(Hi/Lo)
 575 596 622 650
Seat Tube Length 405 405 440 490
Seat Tube Angle (Hi/Lo) 75.7° 76° 76.1° 76.2°
Seat Tube Angle at Saddle Height
(Hi/Lo)
 75.0 at 680 75.1 at 730 75.1 at 780 75.1 at 830
Standover Height
(Hi/Lo)
 735 743 745 744

All units are in millimeters or degrees.
