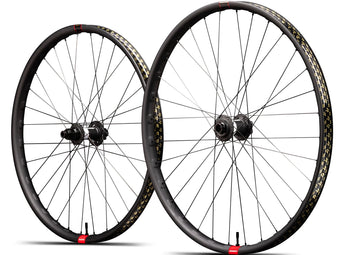

The all-new Reserve 30|DH - a wheelset built to withstand the biggest hits, the toughest terrain, and the most demanding downhill tracks in the world. Designed with direct input from the Santa Cruz Syndicate and tested at Red Bull Hardline events and World Cup DH races, 30|DH wheels deliver the strength, reliability, and precision handling you need to push your limits.Â
Â
These wheels are built to take on everything from race runs to bike park laps. A redesigned carbon layup delivers increased impact resistance, and a refined profile improves compliance. If you’re looking for unparalleled durability without sacrificing speed, Reserve 30|DH are ready to drop in.
SPECIFICATIONS
-
Designed For
DH Riding and Racing - Hub
DT Swiss 350 DEG -
Hub Spacing
DH: 20x110 F - 12x157 R
- Brake Rotor Mounting
6-bolt -
Spoke Count
28 F - 32 R -
Wheelset Weight
29" DT 350 - 2036g -
Rim Weight
29" F 585g - R 645g - 27.5" R 540g -
Inner Width
30mm -
External Width
38mm -
Rim Depth
20mm -
Asymmetric Offset
3.6mm -
ERD
29" 599mm - 27.5" 559mm -
Recommended Tire Dimensions
2.4" to 2.6" -
E-Bike Approved
Yes
WHAT'S IN THE BOX
- 1x Complete wheelset
- 34mm Reserve Rim Tape (installed)
- 2x 50mm Fillmore Tubeless Valves (un-installed)
- User Manual
