Giant

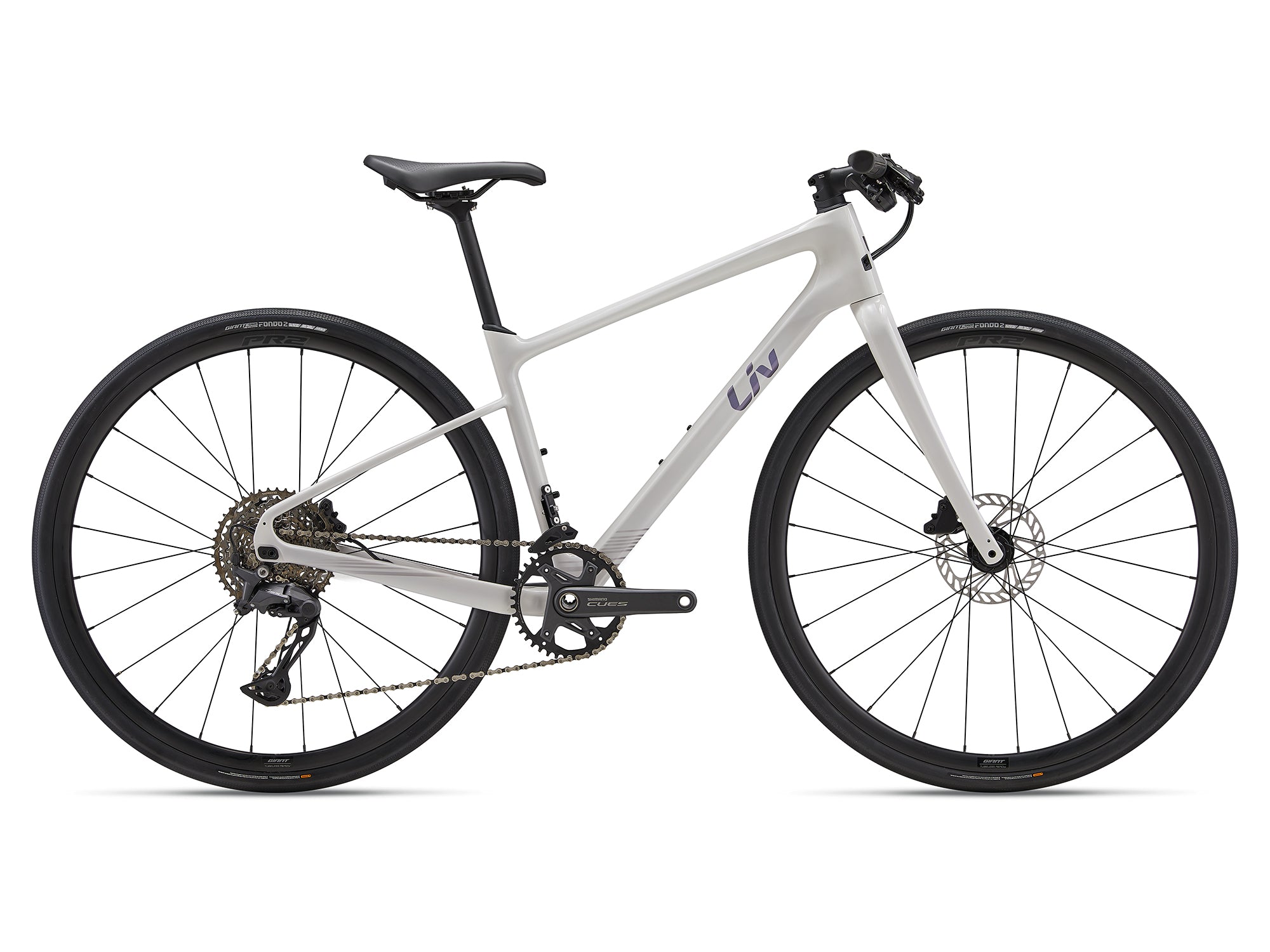

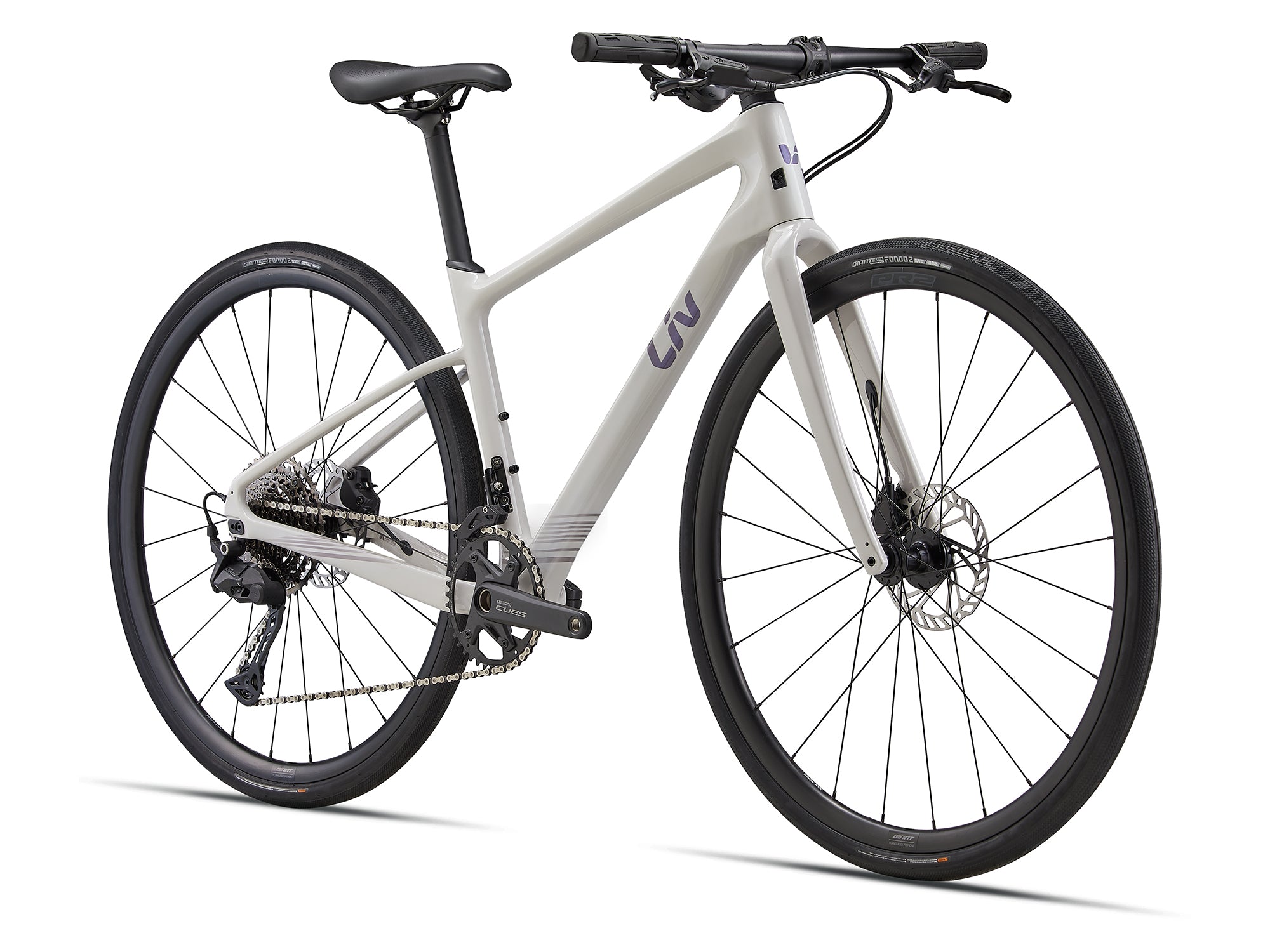

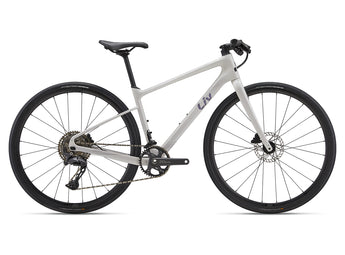

LIV THRIVE AR ADVANCED 1 (CUES) - ASIA

$2,500.00 Sold out
New
3 payments of $833.33 with
Color: Lavender Blush
Size: XS
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color: Lavender Blush
Size: XS

Highlight

Experience the perfect combination of speed, versatility, and comfort with the Thrive Advanced – your lightweight and sleek solution for turning commutes and fitness rides into an enjoyable part of your daily routine. Featuring a carbon frame, pressure-relieving grips and saddle, and tubeless tires, ride your way to better health with ease and style.

KEY PERFORMANCE FACTORS
LIGHTWEIGHT EFFICIENCY

The Thrive Advanced features a lightweight and nimble Advanced-grade composite frame and fork, balanced geometry, and flat handlebar for ultimate efficiency and control.

MAXIMUM COMFORT

Take on longer rides with ease and comfort with pressure-relieving grips and saddle, as well as a shock-absorbing D-Fuse seatpost that minimizes road vibrations and bumps – ensuring a smooth and controlled ride from start to finish.

ALL-ROAD VERSATILITY

The carbon flip chip - dropout allows you to easily adjust the geometry and tire clearance, giving you more versatility and customization options to suit your riding style and terrain. Switch to the short position for quicker handling and a maximum tire clearance of 40c, or choose the long position for stability at speed and increased tire clearance up to 45c.

SPECIFICATIONS
  • Sizes
    XS, S, M
  • Colors
    Lavender Blush
  • Frame
    Advanced-Grade Composite, flat mount disc, 12x142mm thru-axle with flip-chip dropout
  • Fork
    Advanced-Grade Composite, Full Carbon, OverDrive  Steerer, 12x100mm thru-axle, flat mount disc
  • Shock
    N/A
  • Handlebar
    Giant Sport, 0mm rise, 9-degree back sweep, clamp diameter 31.8mm
    XS & S: 600mm
    M: 640mm
  • Grips
    Giant ErgoContact
  • Stem
    Giant Contact, 8-degree (XS: 80mm, S: 80mm, M: 90mm)
  • Seatpost
    Giant D-Fuse composite, 350mm
  • Saddle
    Liv ErgoMax
  • Pedals
    platform pedal
  • Shifters

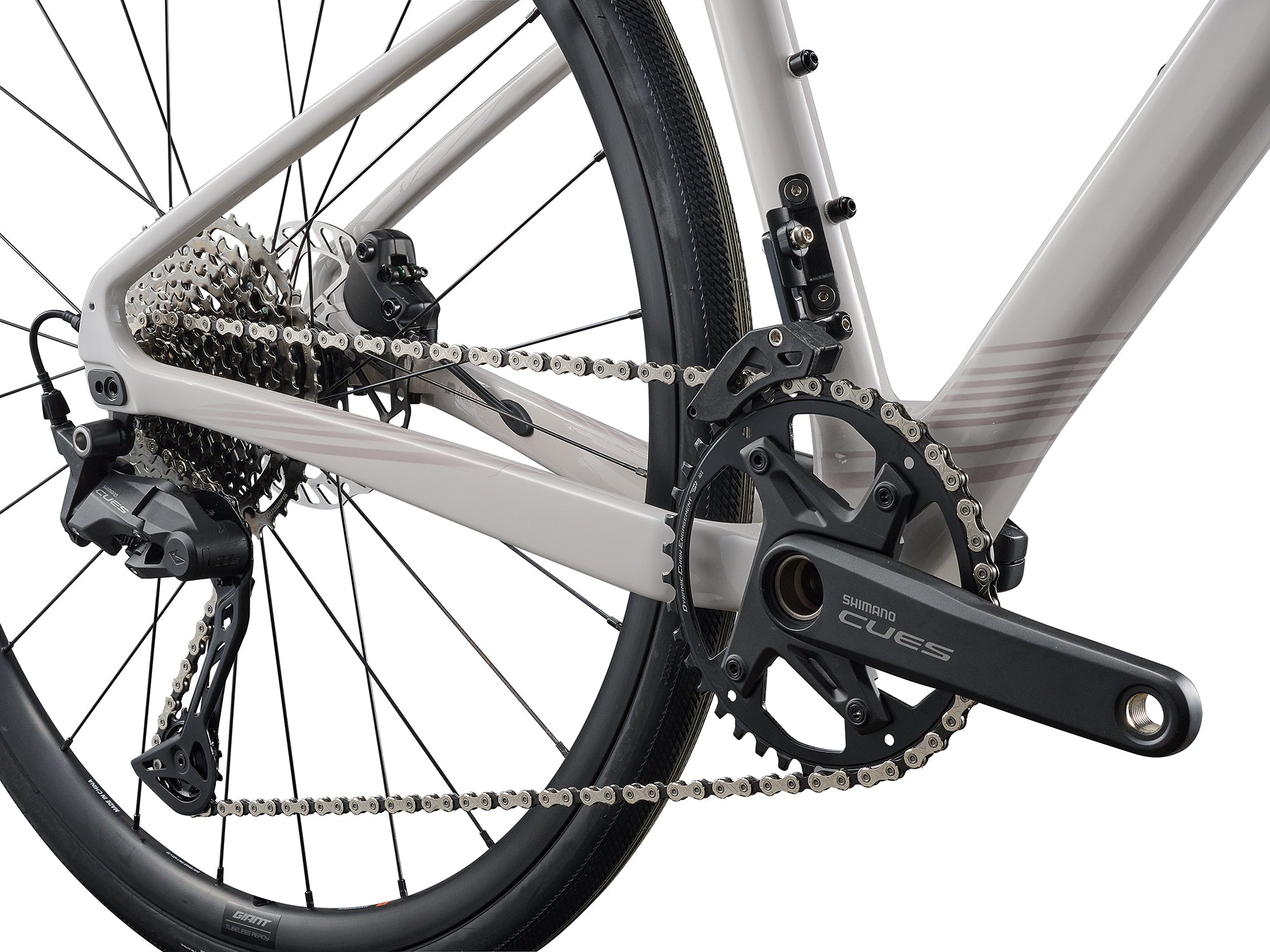

    Shimano CUES, SL-U6000-11R, 1x11-speed
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano CUES, RD-U6020-11
  • Brakes
    Tektro Hydraulic Disc, HD-M3110, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Tektro Hydraulic Disc, HD-M3110
  • Cassette
    Shimano CS-LG400-11,11x45
  • Chain
    KMC X11 with Missing Link
  • Crankset
    Shimano CUES, FC-U6030-1, 40T
    XS - S: 165mm,
    M: 170mm
  • Bottom Bracket
    BB-RS500-PB
  • Rims
    Giant P-R2 Disc, 700C Wheelset, 12mm Thru Axles
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Giant P-R2 Disc
  • Tyres
    Giant Gavia Fondo 2, wirebead, tubeless, 700x32c
  • Extras
    tubeless prepared, 42mm max tyre size, double chain ring 50/34T, single chain ring 42T

*All specifications and prices listed are subject to change without notice.

    Sizing Guide and Geometry

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary by country.

    Fastroad Advanced AR
    		XS S M ML L XL
    A SEAT TUBE LENGTH (mm) 435 455 475 495 525 555
    B SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
    C TOP TUBE LENGTH (mm) 545 560 575 590 610 630
    D HEAD TUBE LENGTH (mm) 110 130 155 175 200 225
    E HEAD TUBE ANGLE 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
    F FORK RAKE (mm) 50 50 50 50 50 50
    G TRAIL (mm) 73.7 73.7 70.4 70.4 67.1 67.1
    H WHEELBASE (mm) 1031 1047 1058 1069 1084 1105
    I CHAIN STAY LENGTH (mm) 435 435 435 435 435 435
    J BOTTOM BRACKET DROP (mm) 75 75 75 75 75 75
    K STACK (mm) 533 552 578 597 623 646
    L REACH (mm) 387 396 404 407 419 432
    M STAND OVER HEIGHT (mm) 718 736 756 773 800 826
    O STEM LENGTH (mm) 70 80 90 90 100 110
    P CRANK LENGTH (mm) 170 170 170 172.5 172.5 172.5
    Q WHEEL SIZE 700C 700C 700C 700C 700C 700C
    *All measurements shown are in millimetres unless otherwise stated.
