Highlight

Newly integrated components including the Contact AeroLight stem create a sleeker, more aero profile. The Variant seatpost adds just enough compliance for a balanced, race-tuned feel on the road, while generous tyre clearance (up to 33mm) and compliant wheels keep you rolling with speed on smooth or bumpy roads.

KEY PERFORMANCE FACTORS

System Optimization

The frameset, wheels, cockpit and other parts were engineered, developed and tested together to perform as a system. The all-new Contact AeroLight stem allows for cable
routing that integrates the top cap, cables and spacers in a more aerodynamic, user-friendly setup.

Winning Efficiency

Featuring a greater stiffness-to-weight ratio than the previous generation, along with new aero tube shaping and a lighter overall weight, this uncompromising race bike
delivers explosive acceleration and unyielding pedaling stiffness. The result is race-winning performance in the moments that count.

Integrated Aerodynamics

All tube shapes were engineered and developed using Computational Fluid Dynamics (CFD) modeling and wind-tunnel testing. From the truncated ellipse shape of frameset
tubing to a new cockpit design and component integration, it all adds up to a more streamlined profile that improves overall aero performance compared to the previous
generation.

SPECIFICATIONS

Sizes

XS, S, M, M/L, L, XL
Colors

Alpine Green, Frost Silver

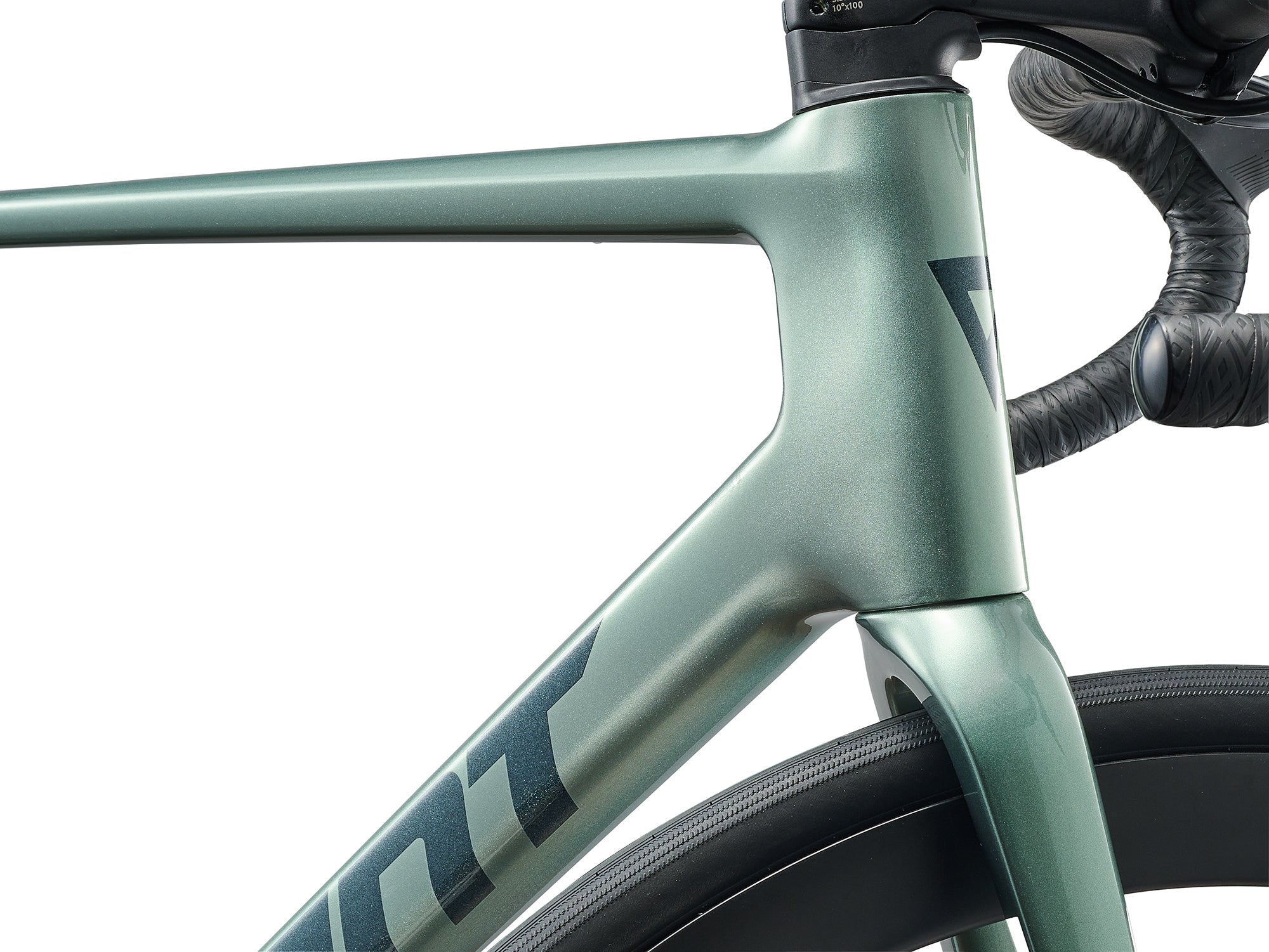

Frame

Advanced-Grade Composite, 12x142mm thru-axle, disc

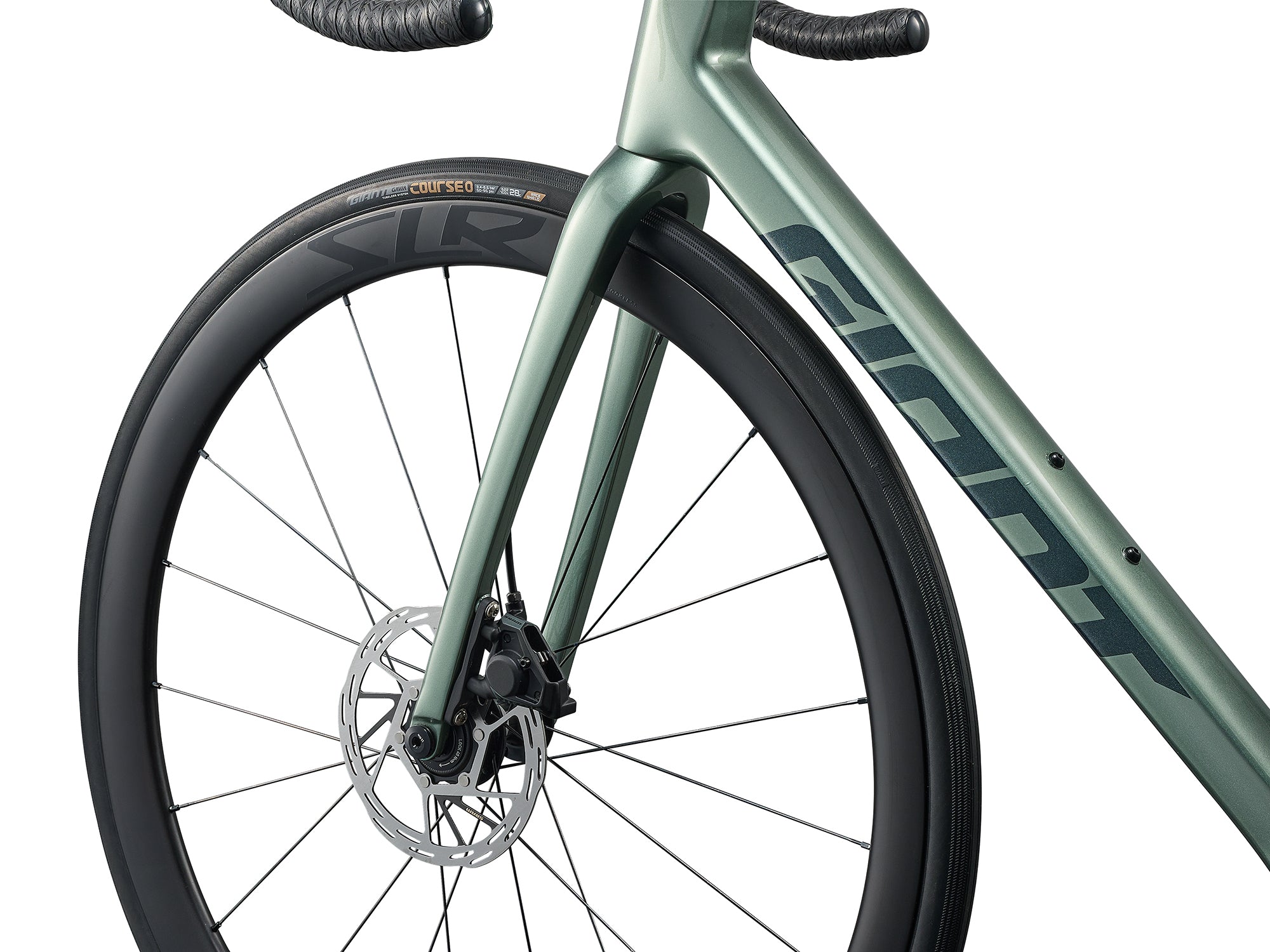

Fork

Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Shock

N/A

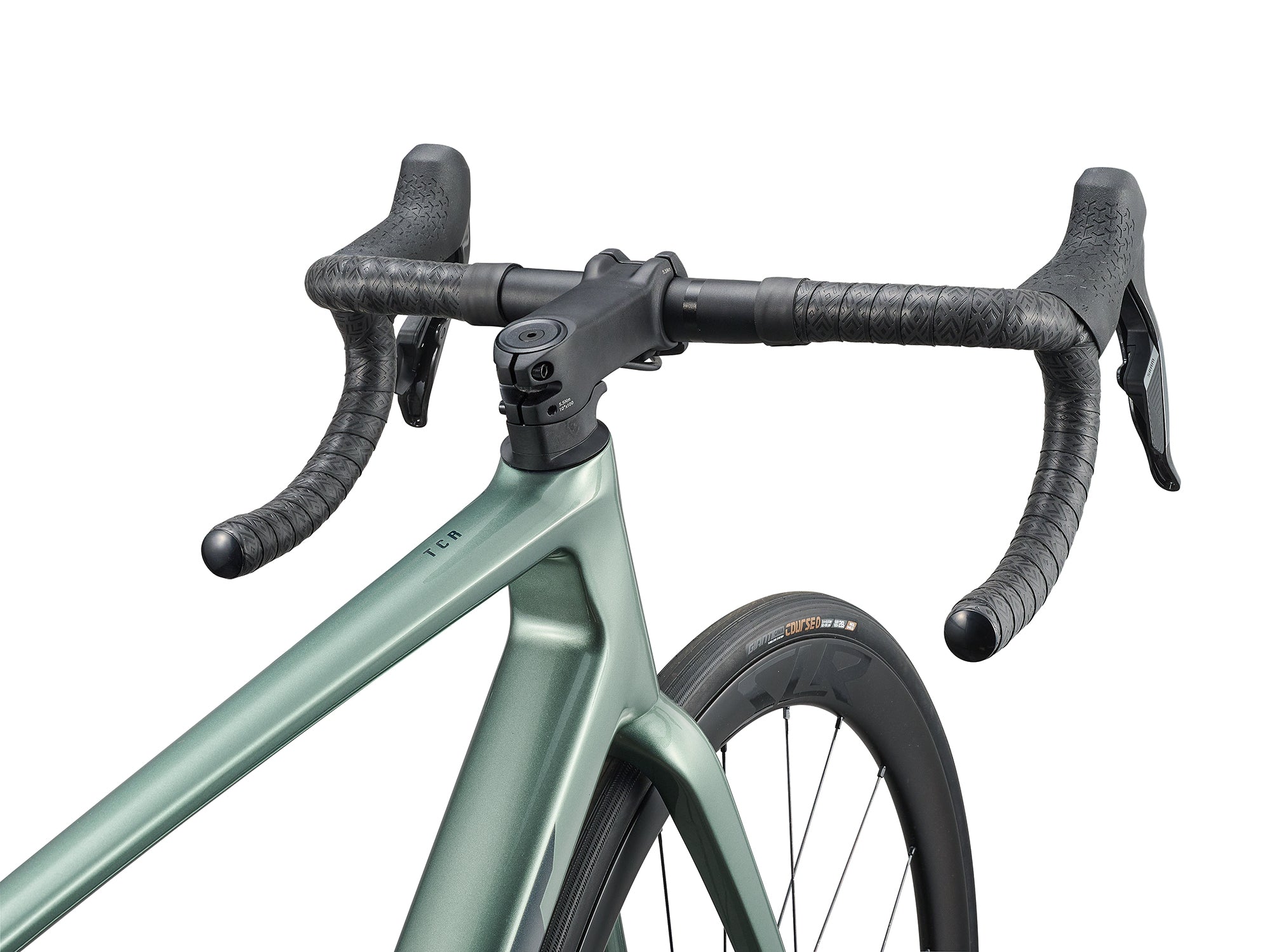

Handlebar

Giant Contact (XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm)
Bar Tape

Giant Stratus Lite 3.0 with gel
Stem

Giant Contact AeroLight (XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm)
Seatpost

Giant Variant, composite, -5/+15mm offset
Saddle

Giant Approach
Pedals

N/A
Shifters

SRAM Rival AXS E1
Front Derailleur

SRAM Rival AXS E1

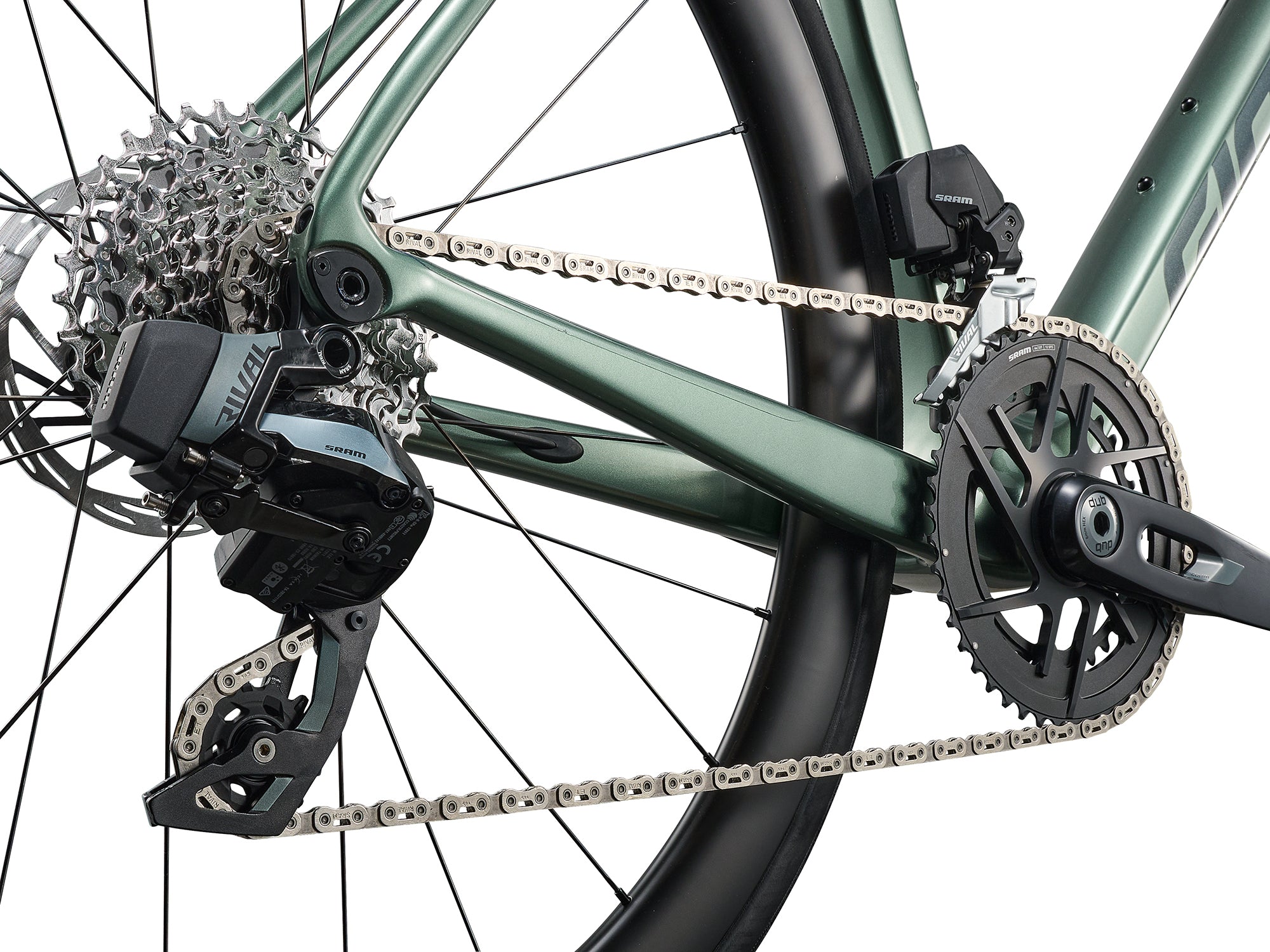

Rear Derailleur

SRAM Rival AXS E1, max 36T
Brakes

SRAM Rival AXS E1, SRAM Paceline rotors, centerlock [F]160mm, [R]140mm
Brake Levers

SRAM Rival AXS E1
Cassette

SRAM Rival AXS E1, 10x36T
Chain

SRAM Rival AXS E1

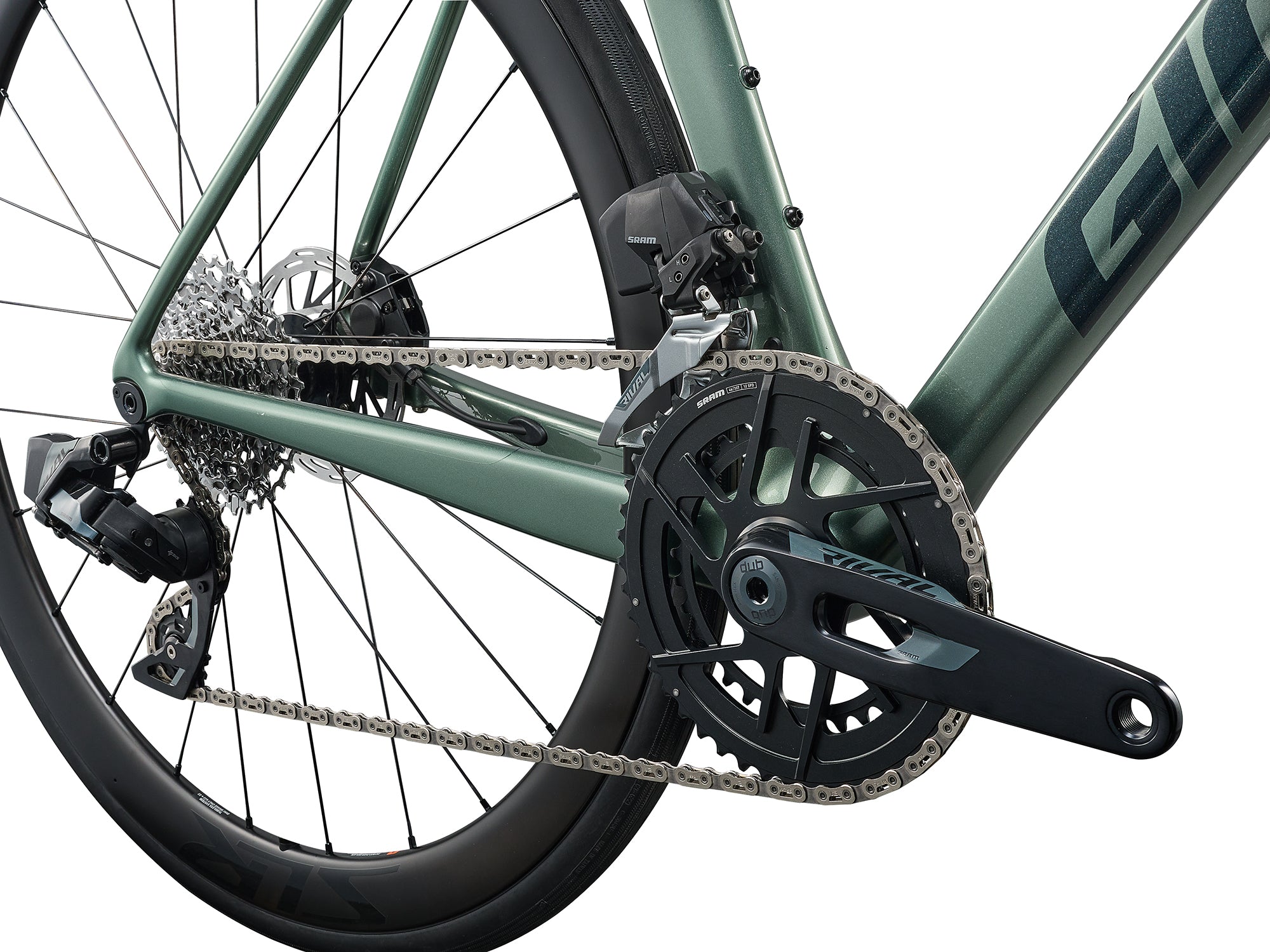

Crankset

SRAM Rival AXS E1, 33/46T
XS & S: 165mm
M & ML: 170mm
L & XL: 172.5mm
Bottom Bracket

SRAM DUB press-fit 86.5mm
Rims

Alpine Green option: Giant SLR 2 40 WheelSystem, hookless rim, [F]40mm, [R]40mm
Hubs

[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle

[R] Giant Low Friction Hub, 3-pawl driver, CenterLock, 12mm thru-axle
Spokes

stainless steel
Tyres

Alpine Green option: Giant Gavia Course 1, tubeless, 700x25c, folding
Extra

tubeless prepared, 33mm max tyre size

*All specifications and prices listed are subject to change without notice.

Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.

TCR Advanced & Advanced Pro Disc (10th Gen)

		XS	S	M	ML	L	XL
A	Seat tube length	425	445	470	500	530	560
B	Seat tube angle (degrees)	74.50	74.00	73.50	73.00	73.00	72.50
C	Top tube length	520	535	550	565	580	600
D	Head tube length	120	130	145	165	185	200
E	Head tube angle (degrees)	71.00	72.25	73.00	73.00	73.00	73.00
F	Fork rake	45	45	45	45	45	45
G	Trail	72	64	59	59	59	59
H	Wheelbase	976	977	980	991	1006	1020
I	Chain stay length	405	405	405	405	405	405
J	Bottom bracket drop	72	69.5	69.5	67	67	67
K	Stack	517	528	545	562	581	596
L	Reach	376	383	388	393	402	412
M	Stand over height	703	722	743	771	798	822
N	Handlebar width	400	400	420	420	440	440
O	Stem length	80	90	100	110	110	120
P	Crank length	170.0	170.0	172.5	172.5	175.0	175.0
Q	Wheel size	700C	700C	700C	700C	700C	700C
