Giant

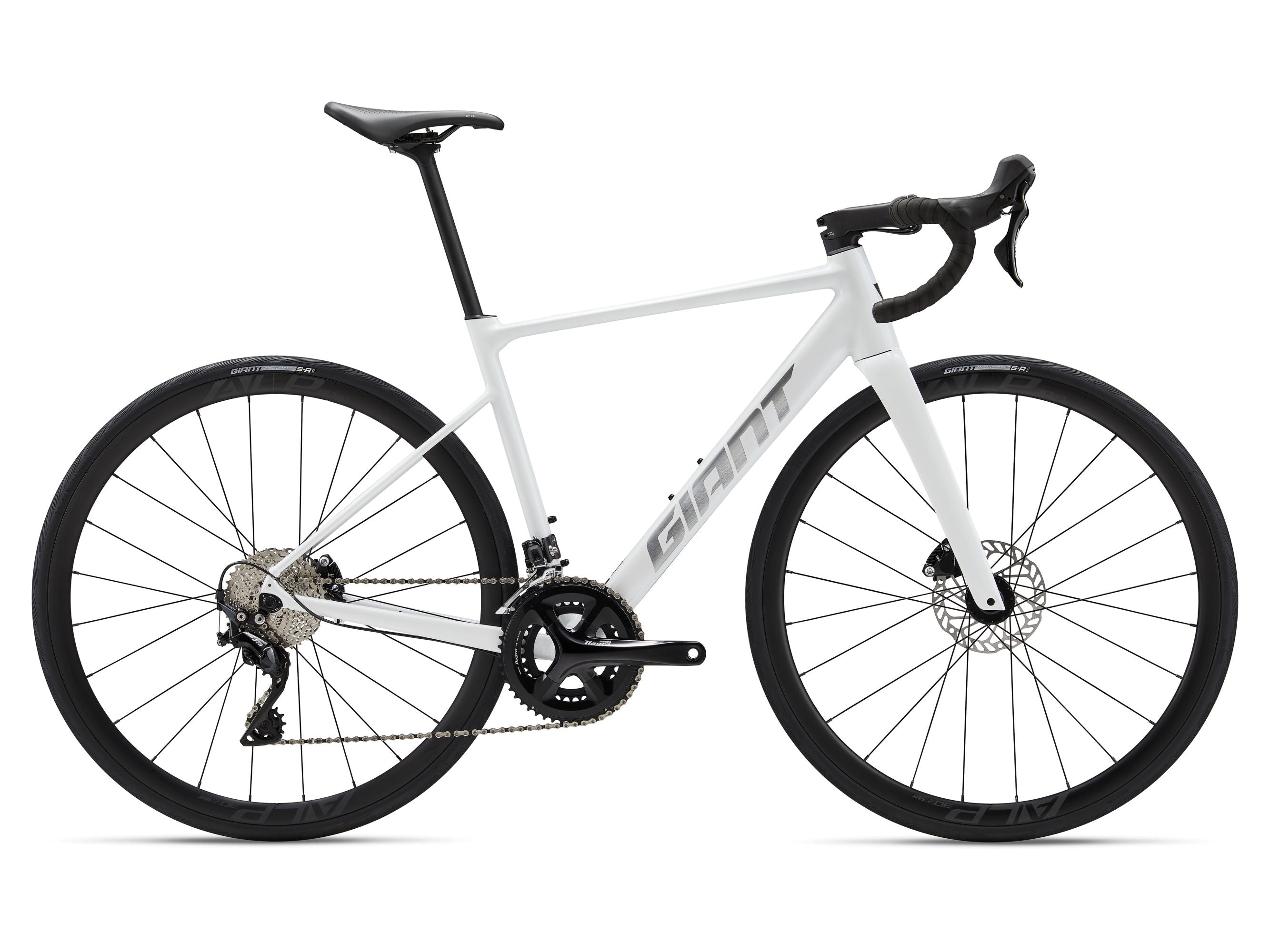

GIANT CONTEND SL 1
Couldn't load pickup availability
Doorstep Delivery
Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size Chart (Road) - Contend Aero
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


CONTEND AERO
| XS | S | M | ML | L | ||
| A | Seattube length | 410 | 445 | 480 | 515 | 535 |
| B | Seattube angle (degrees) | 74.5 | 74.0 | 73.5 | 73.0 | 73.0 |
| C | Toptube length | 515 | 530 | 545 | 560 | 575 |
| D | Headtube length | 125 | 135 | 150 | 175 | 195 |
| E | Headtube angle (degrees) | 70.5 | 71.8 | 72.5 | 72.5 | 72.5 |
| F | Fork rake | 50 | 50 | 50 | 50 | 50 |
| G | Trail | 69.3 | 61.3 | 56.5 | 56.5 | 56.5 |
| H | Wheelbase | 995 | 994 | 998 | 1010 | 1025 |
| I | Chainstay length | 420 | 420 | 420 | 420 | 420 |
| J | Bottom bracket drop | 75 | 75 | 75 | 70 | 70 |
| K | Stack | 527 | 541 | 558 | 577 | 596 |
| M | Standover height | 693 | 720 | 748 | 781 | 800 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 |
| O | Stem length | 80 | 90 | 100 | 100 | 110 |
| P | Crank length | 165 | 165 | 170 | 170 | 172.5 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C |
Highlight
From its sleek, aero-inspired alloy frame and composite fork to its road-smoothing components and ergonomically designed cockpit, the new Contend SL makes performance road riding accessible to all. Speed through the city or join the group ride with more confidence, control and speed.
Aero Inspired
Command Control
Smooth Comfort
SPECIFICATIONS
-
SizesXS, S, M, M/L, L, XL
-
FrameALUXX-SL Grade Aluminum 12x142mm thru-axle, Disc
-
ForkAdvanced-Grade Composite, Full Carbon, OverDriveĀ Steerer, 12x100mm thru-axle, Disc
-
HandlebarGiant Contact (w/Flare) Drop: 125mm / Reach: 72mm
-
GripsCork (Gel) Tape VLT-001G
-
StemGiant Contact Aerolight, -10° XS: 80, S: 90, M: 100, M/L: 100, L:110, XL: 120
-
SeatpostGiant D-Fuse Composite Offset 14mm
-
SaddleGiant Grit Core
-
ShiftersShimano Tiagra R4000
-
Front DerailleurShimano Tiagra R4000
-
Rear DerailleurShimano Tiagra R4000
-
BrakesShimano Tiagra Hydraulic Disc Brake [F]160mm [R]140mm
-
Brake LeversShimano Tiagra R4000
-
CassetteShimano CS-RS400-11, 11X36, 11 speed
-
ChainKMC X11
-
CranksetShimano FC-R4000, 50/34
-
Bottom BracketShimano, PressFit RS500
-
RimsGiant ALP Disc 12mm Thru-Axle
-
TiresGiant SR 1 700X28C, 60 TPI
-
Max Tire Clearance700x33mm
*All specifications and prices listed are subject to change without notice.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary by country.


CONTEND AERO
| XS | S | M | ML | L | ||
| A | Seattube length | 410 | 445 | 480 | 515 | 535 |
| B | Seattube angle (degrees) | 74.5 | 74.0 | 73.5 | 73.0 | 73.0 |
| C | Toptube length | 515 | 530 | 545 | 560 | 575 |
| D | Headtube length | 125 | 135 | 150 | 175 | 195 |
| E | Headtube angle (degrees) | 70.5 | 71.8 | 72.5 | 72.5 | 72.5 |
| F | Fork rake | 50 | 50 | 50 | 50 | 50 |
| G | Trail | 69.3 | 61.3 | 56.5 | 56.5 | 56.5 |
| H | Wheelbase | 995 | 994 | 998 | 1010 | 1025 |
| I | Chainstay length | 420 | 420 | 420 | 420 | 420 |
| J | Bottom bracket drop | 75 | 75 | 75 | 70 | 70 |
| K | Stack | 527 | 541 | 558 | 577 | 596 |
| M | Standover height | 693 | 720 | 748 | 781 | 800 |
| N | Handlebar width | 400 | 400 | 420 | 420 | 440 |
| O | Stem length | 80 | 90 | 100 | 100 | 110 |
| P | Crank length | 165 | 165 | 170 | 170 | 172.5 |
| Q | Wheel size | 700C | 700C | 700C | 700C | 700C |
