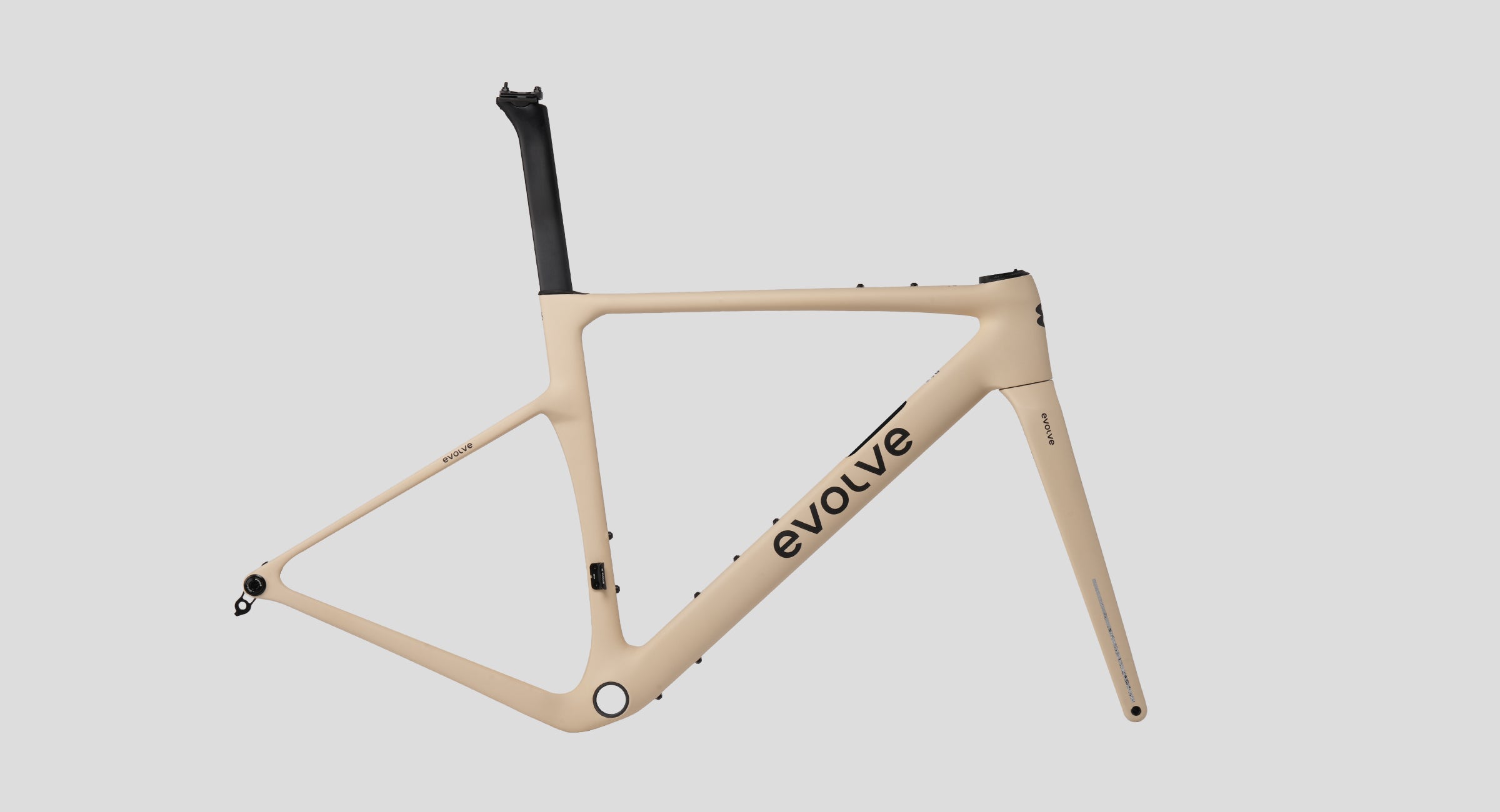

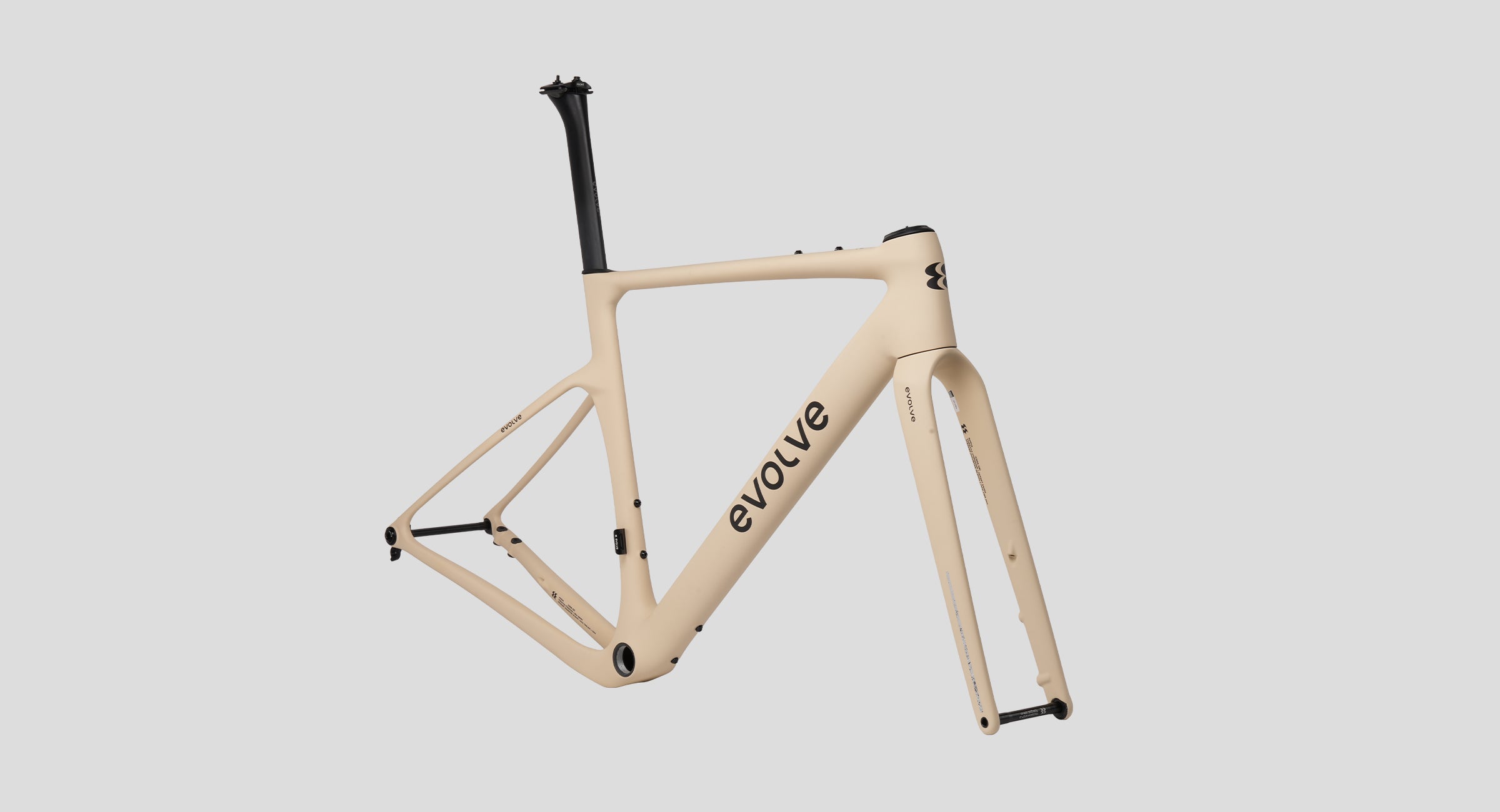

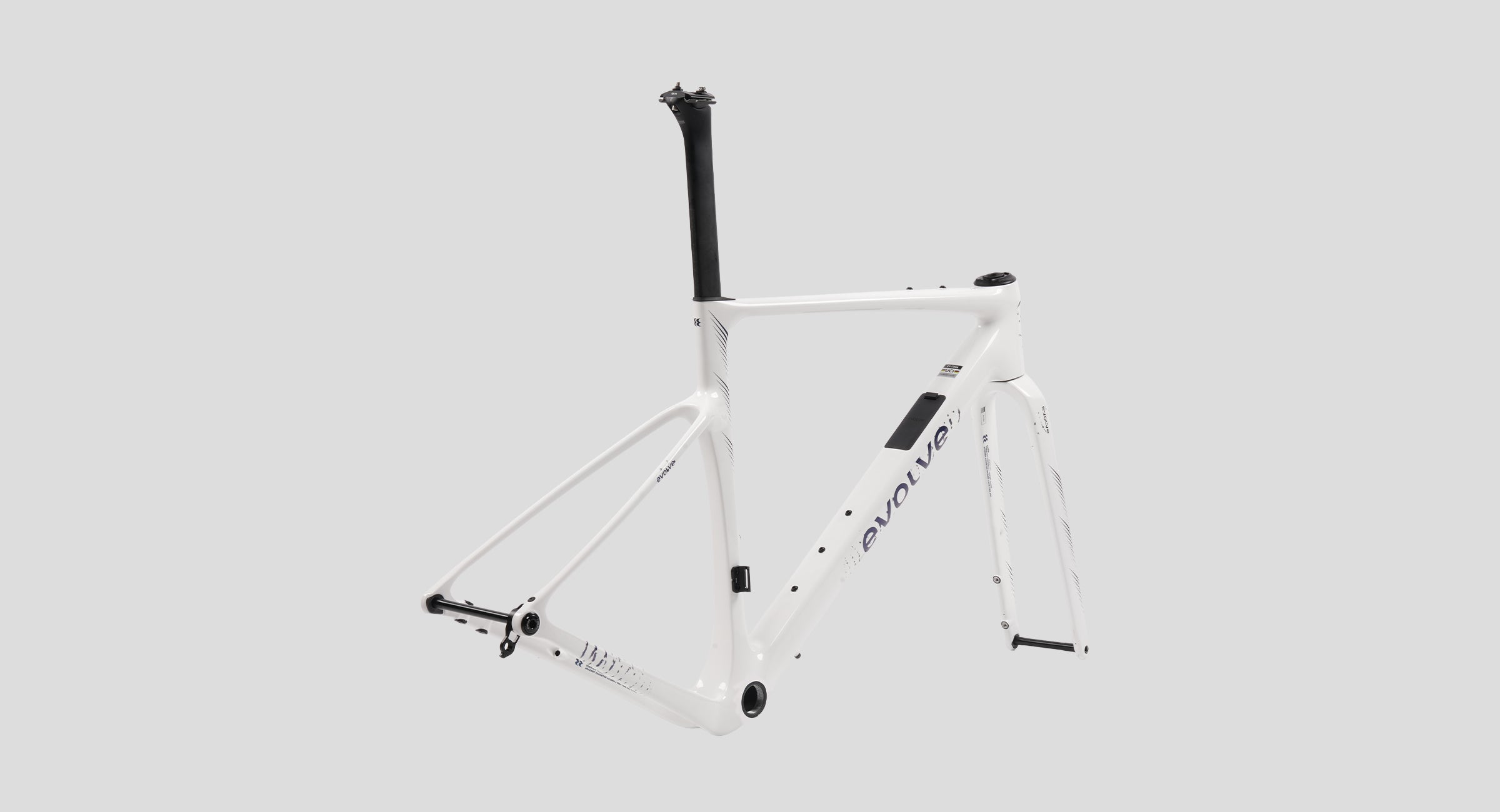

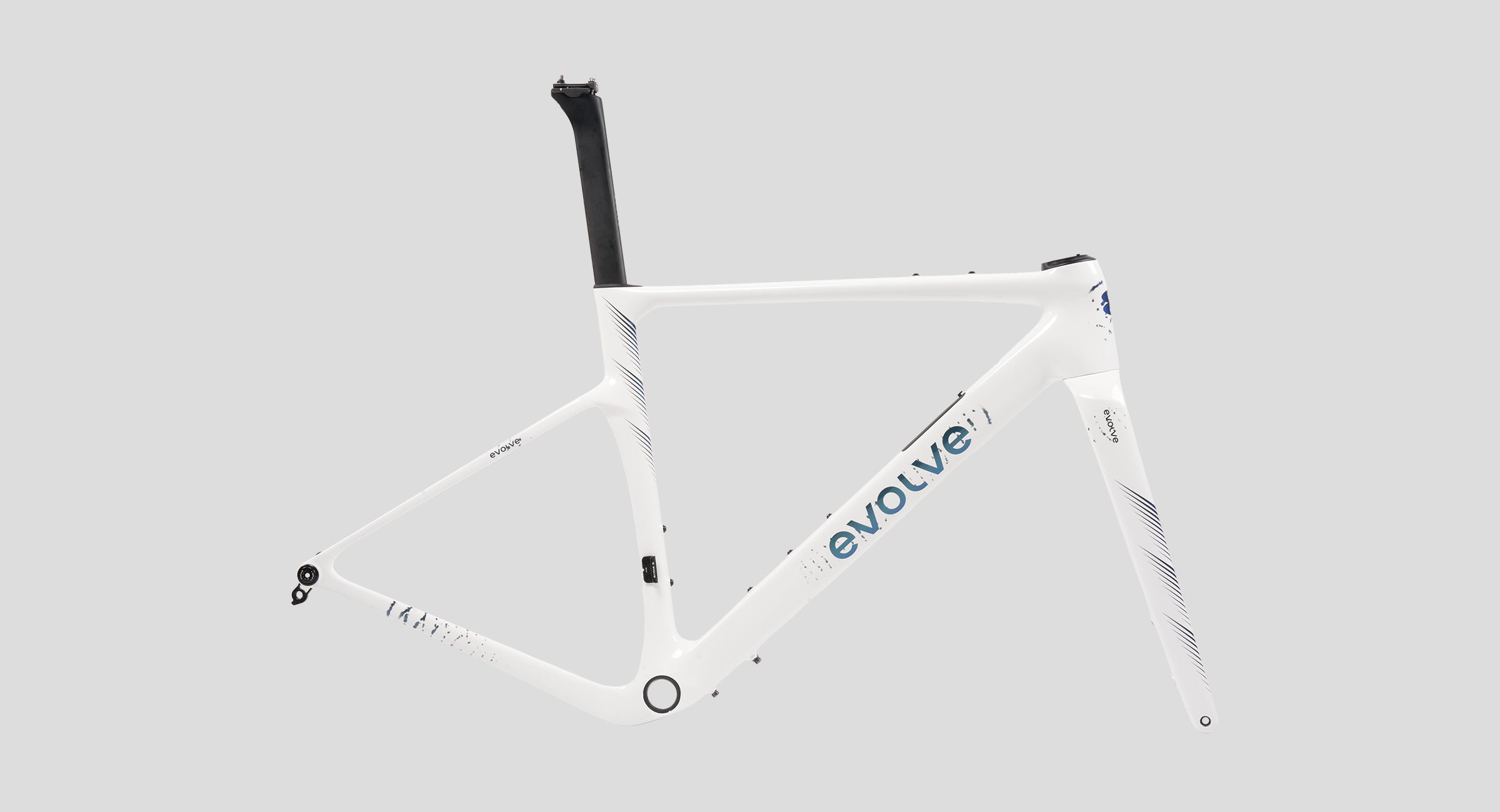

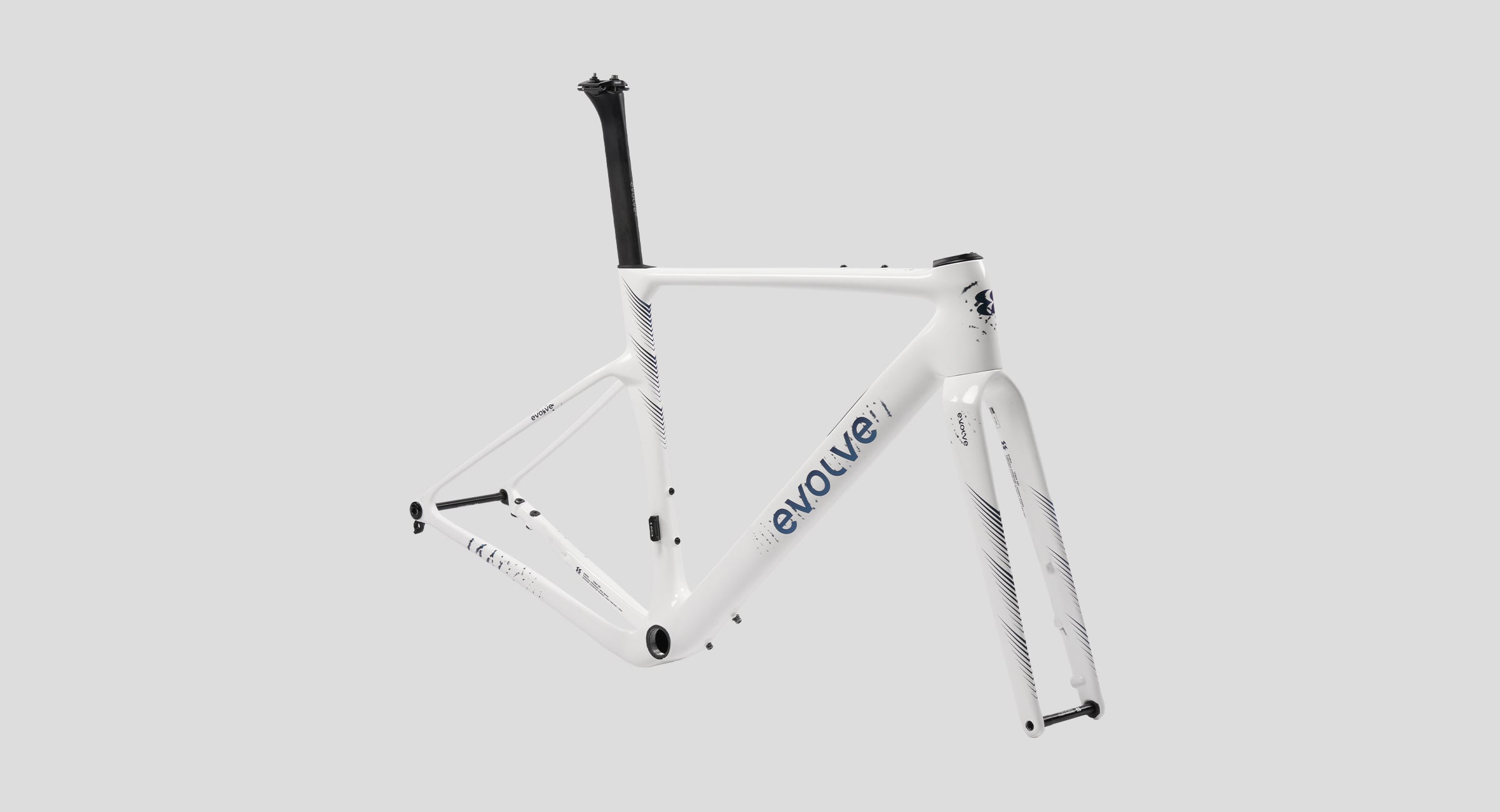

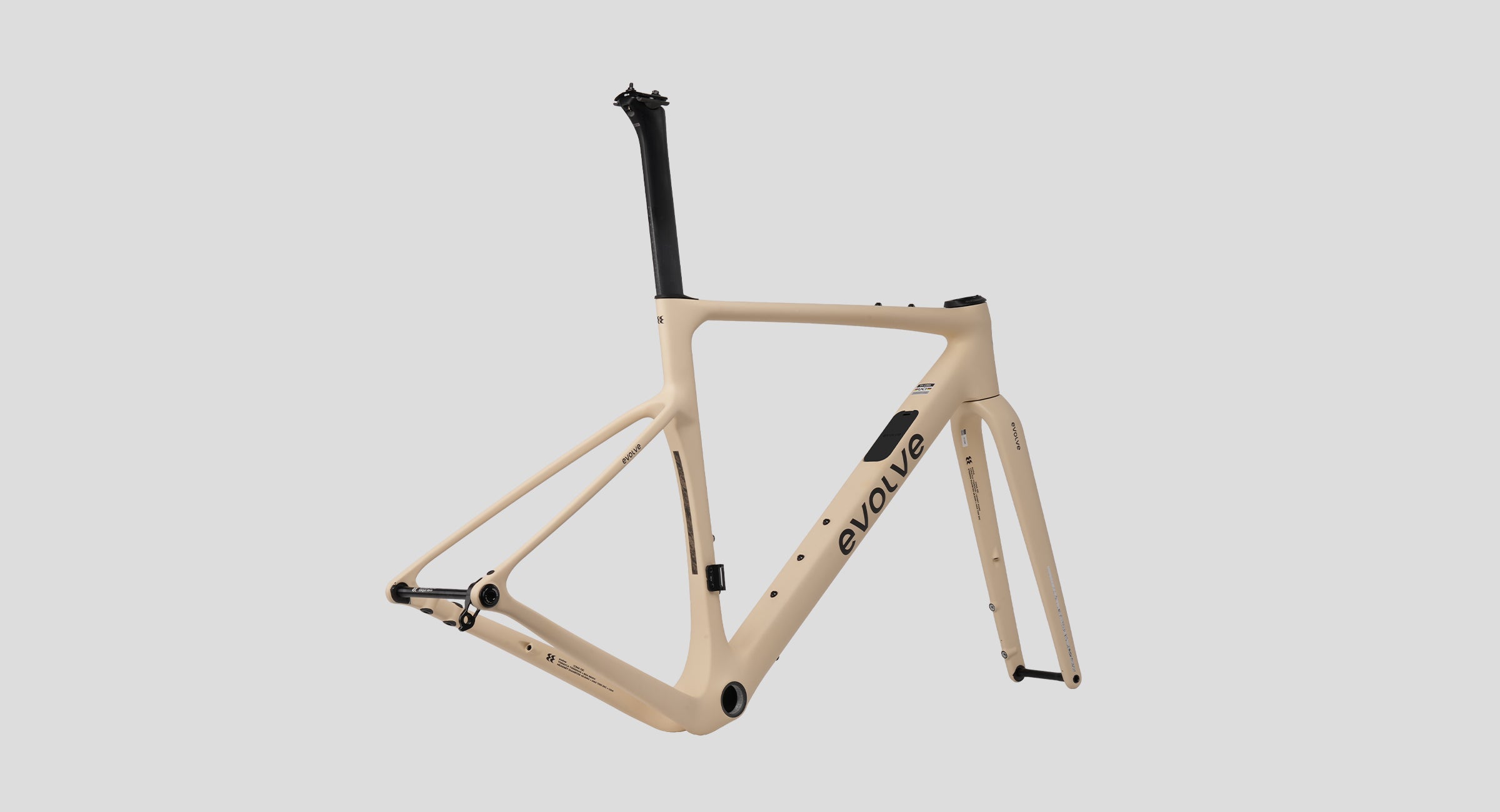

EVOLVE CIMA GRAVEL FRAME & COCKPIT

$3,200.00 Sold out
3 payments of $1,066.66 with
Size: XS
Color: Sailfish Pearl
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Size: XS
Color: Sailfish Pearl

Highlight

Ultra-Lightweight

750g (Size M, unpainted)
Built with evolve’s signature lightweight philosophy

Advanced Carbon Layup

TORAYCA® T1100 & T800
M40 High-modulus carbon for the ideal balance of weight, strength, and durability.

Optimized Stiffness

+7.5% BB | +1.2% Head Tube
More efficient power transfer and sharper handling where it matters most.

Relentless Pursuit of Speed

Up to 17.28W saved at 35km/h
Engineered to outperform top-tier gravel frames in aerodynamic efficiency.



#evolve CIMA CR

XS S M ML L XL
HEIGHT/CM <163 161-170 168-177 175-184 182-192 >190
1.STACK/MM 506 528 544 562 580 608
2.REACH/MM 371 378 384 390 397 406
3.HEAD TUBE LENGTH/MM 103 122 138 153 173 203
A.HEAD TUBE ANGLE 71.1 72.2 73 73.8 73.8 73.8
4.BB DROP/MM 74 74 72 72 70 70
5.TRAIL/MM 70 63 58 57 57 57
6.FORK LENGTH FULL/MM 372 372 372 372 372 372
7.FORK RAKE/OFFSET/MM 44 44 44 40.2 40.2 40.2
8.FRONT CENTER/MM 571 573 579 579 591 608
9.REAR CENTER/MM 410 410 410 410 410 410
10.SEAT TUBE LENGTH/MM 443 465 481 499 517 540
B.SEAT TUBE ANGLE 75 75 74 74 73.5 73.5
11.WHEELBASE/MM 969 973 978 978 991 1008
12.TOP TUBE LENGTH/MM 507 519 540 551 569 586
13.STANDOVER HEIGHT/MM 727 749 767 785 805 829

How to Calculate Your Frameset Weight?

With Handlebar:

Total Weight = Frame + Fork + Seatpost + Components + Handlebar
Tolerance: ±45g

Without Handlebar:

Total Weight = Frame + Fork + Seatpost + Components
Tolerance: ±37g

Example:

If you purchase a Mist frameset, size M, with a handlebar, the total weight is calculated as follows:

  • Frame: 696g
  • Fork: 366g
  • Seatpost (10/310): 96g
  • Seatpost Components: 45g
  • Frameset Components (hangers, clamps, small parts): 180.2g
  • Handlebar (380×100): 308g
  • Handlebar Components: 29.3g

Total Weight = 696+366+96+45+180.2+308+29.3 = 1720.5g
Tolerance: ±45g

  • Frame MaterialT1100 & T800, M40
  • Frame SizesXS, S, M, ML, L, XL
  • Frame Weight750g (M, Unpainted)
  • ForkOffset 54mm (XS \ S \ M); Offset 50mm (ML \ L\ XL)
  • Fork Weight375g (Unpainted)
  • Groupset CompatibilityInternal cable routing; 1x Mechanical & Electronic Compatible 2x Electronic Drivetrain Only
  • Seatpost Size310 mm / -5 mm 310 mm / 10mm 310 mm / 25mm 380 mm / -5 mm 380 mm / 10 mm 380 mm / 25 mm
  • Saddle Rail Clamps7*7 / 7*9 / 7*10
  • Bottom BracketBSA 68mm
  • BrakeFlat Mount
  • Wheel Size650B / 700C
  • Tire ClearanceB700×50C / 29er×2.0“
  • Cable RoutingInternal
  • Steerer Tube28.6mm（OD1)
  • Max Chainring1X: 50T 2X: 48/31T (Shimano grx) 50/34T (Shimano 12S) 48/35T (SRAM ROAD)
  • Headset Bearing OptionsStandard steel bearings
  • Headset Bearing Size40.5 mm ID x 49.5 mm OD x 6.5 mm
  • Front Axle12 mm x 100 mm
  • Rear Axle12 mm x 142 mm
  • Front Rotor Size160 mm / 180 mm
  • Rear Rotor Size140 mm / 160 mm
  • Rear Derailleur HangerUDH Derailleur Hanger
  • Manufacturer WarrantyLimited Lifetime Warranty
  • Limited Rider Weight109kg
  • Included HandlebarKreuza Apex One-piece Handlebar
    *Kindly chat with us to confirm size availability.
