Highlight
The redesigned CADEX Aero Integrated Handlebar is engineered to help you ride faster with more efficiency and control. One-piece, no-bond carbon construction delivers exceptional stiffness at a lower weight, while a forward-sweeping profile, refined aero tops, and race-optimised geometry put you in a faster, more aerodynamic and comfortable riding position.
FEATURES
- Forward-sweeping design – A 6.5-degree front sweep improves comfort while promoting a narrower, more aerodynamic position.
- Refined Aero Tops — A low-drag top profile slices through wind while giving your hands a comfortable, confident place to control and rest.
- One-Piece Mould Manufacturing — The handlebar section is moulded as a single, no-bond T800/T1100 carbon piece with, cutting the weight, excess material, and flex of a traditional bonded bar.
- Reduced Material – Shaves 70g off the previous generation.
- Race-Optimised Geometry — A 72mm reach and narrower hood spacing place your hands in a natural position that doesn’t sacrifice speed.
- Compact Drop & Race-Tuned Ergonomics — A 125mm drop and race-tuned flare make for quick transitions and stable handling through sprints, descents, and long efforts.

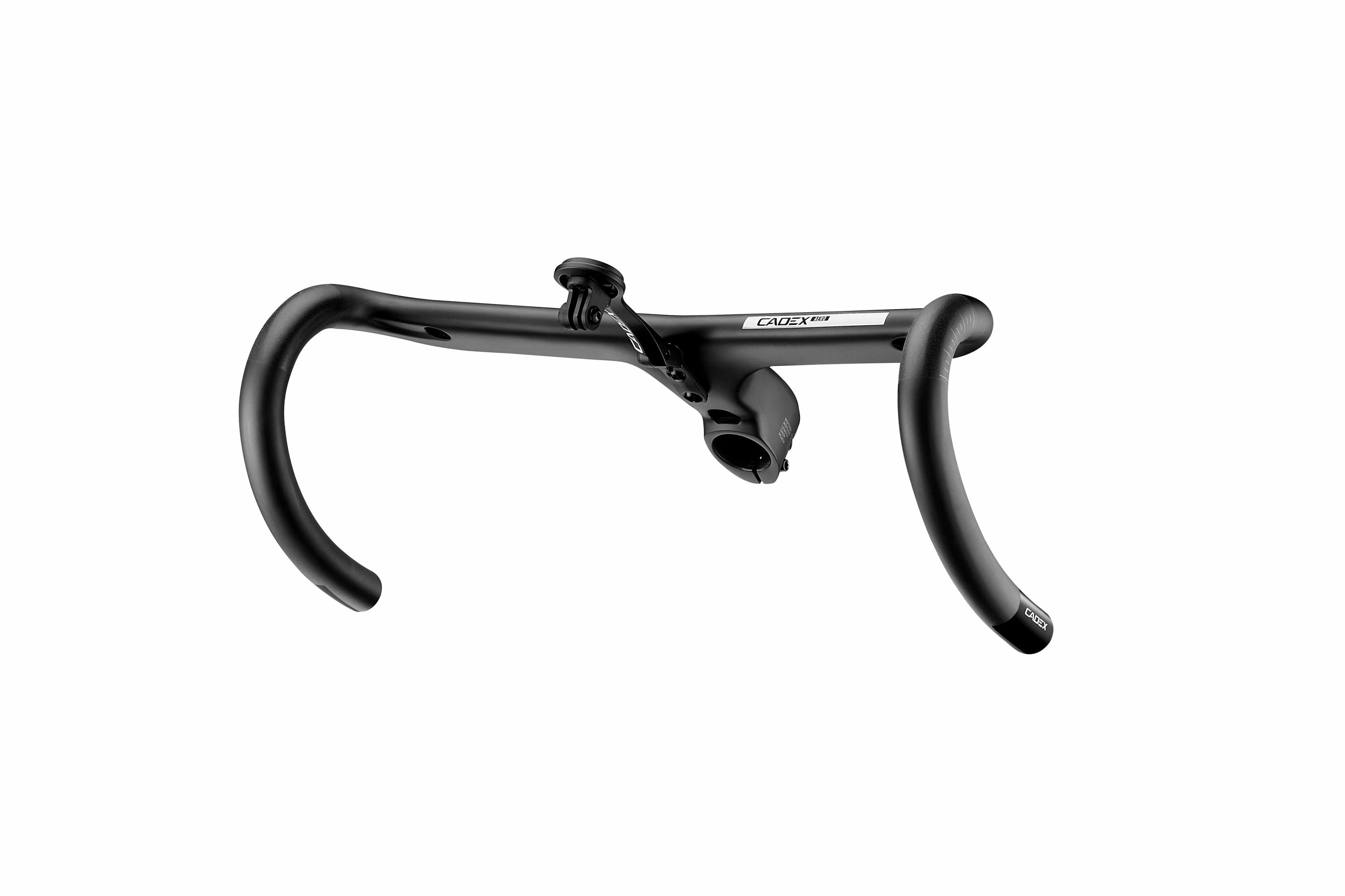

- Adjustable Computer Mount — An included out-front mount adjusts from 2.5 to 17.5 degrees and integrates seamlessly with the underside of the bar to keep your computer securely in place.
SPECIFICATIONS
- Material: Carbon
- Stem Angle: -10 degrees
- Stem Clamp: 1 1/4” / 1 1/8” / OverDrive Aero (with carbon shim)
- Stem Length: 80 / 90 / 100 / 110 / 120 / 130 / 140mm
- Width (Hood to Hood): 360 / 370 / 390MM
- Width: (Drop to Drop) 380 / 400 / 420mm
- Drop: 125mm
- Reach: 72mm
- Flare: 4.8° (380mm) / 7.3° (400 / 420mm)
- Frontsweep: 6.5 degrees
- Weight: 255g (370/400mm x 110mm bar

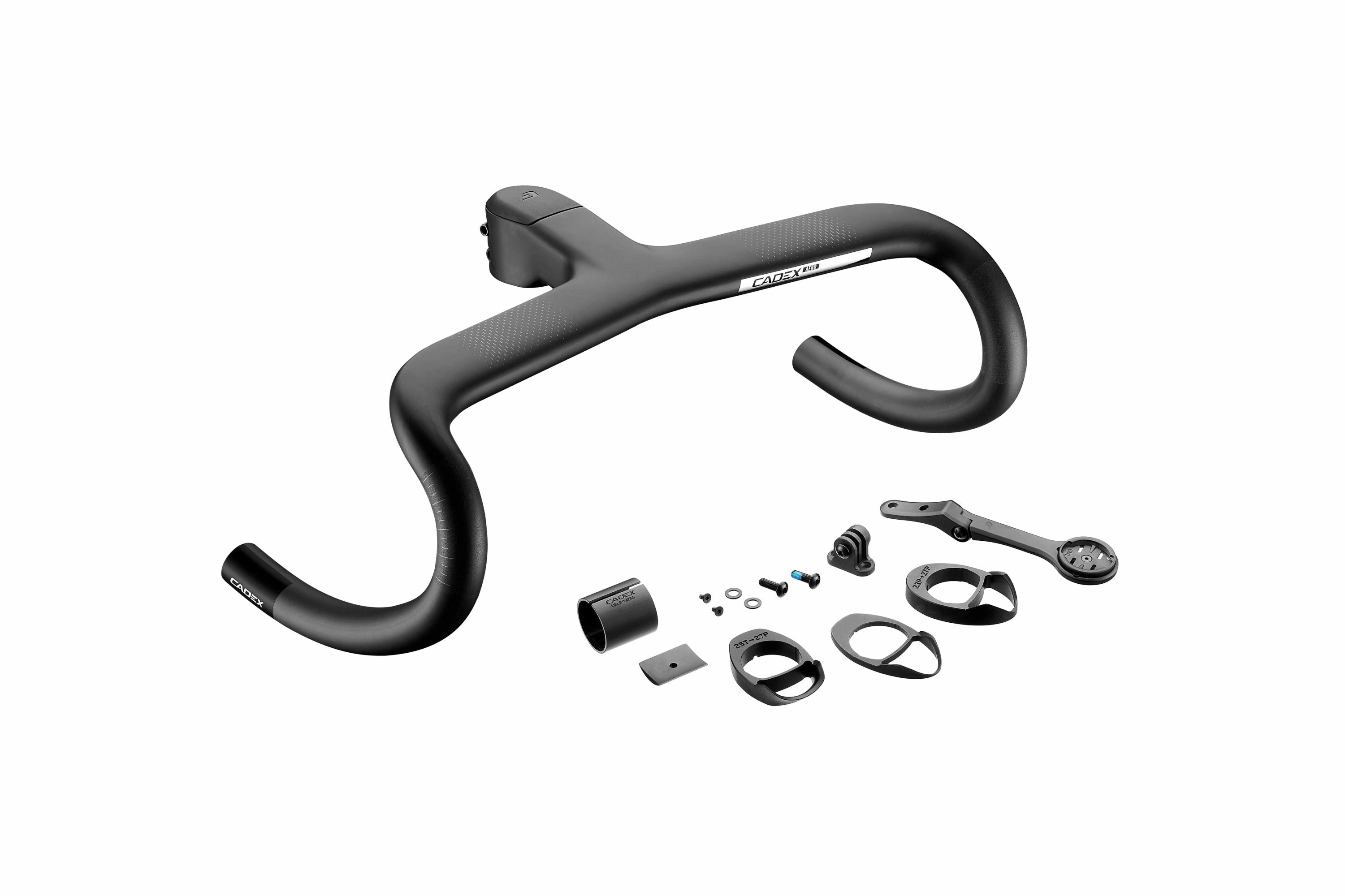

- Included Accessories
1 1/8” spacer
OverDrive Aero spacer
OverDrive Aero shim 1 1/4” to 1/8” shim
CADEX out-front computer mount
*Size (Width-drops / Width-hoods / Stem).
