Giant

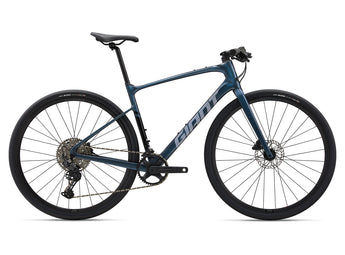

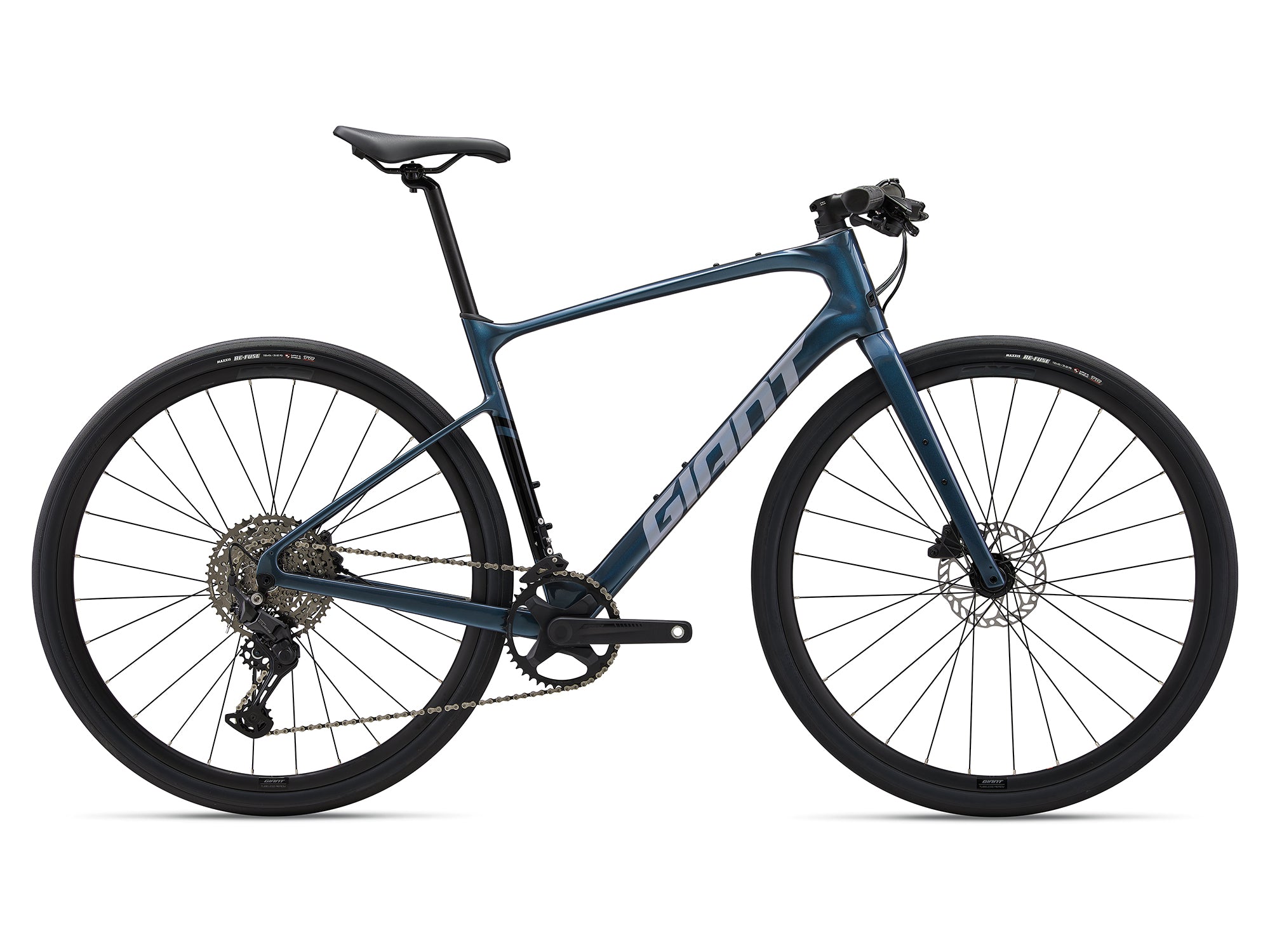

GIANT FASTROAD AR ADVANCED 2 (CUES)

$2,200.00
New
3 payments of $733.33 with
Color: Ocean Twilight
Size: S
Doorstep Delivery

Local Delivery: Estimated 1-2 business days.
Third-party Couriers: Estimated 2-5 business days.
Color: Ocean Twilight
Size: S

Highlight

IMAGINE A QUICK AND AGILE ROAD BIKE BUT WITH GREATER VERSATILITY. WITH FLAT HANDLEBAR POSITIONING, SMOOTH COMPLIANCE AND WIDE TUBELESS TYRES, FASTROAD AR FREES YOU UP TO RIDE PAVED ROADS, BUMPY BIKE PATHS AND EVERYTHING IN BETWEEN.

KEY PERFORMANCE FACTORS
Lightweight efficiency

Advanced Composite frameset and sleek shaping make this model 350 grams lighter than the aluminium version. A stiffer bottom bracket area improves power transfer so you can accelerate and climb faster with less effort.

Smooth, stable ride quality

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoMax saddle helps smooth out rough roads.

All-road capabilities

With clearance for high-volume tubeless tires (up to 42mm), riders have the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.

SPECIFICATIONS
  • Sizes
    XS, S, M, M/L, L, XL
  • Colors
    Ocean Twilight
  • Frame
    Advanced-Grade Composite, flat mount disc, 12x142mm thru-axle
  • Fork
    Advanced-Grade Composite, Full Carbon, OverDrive  Steerer, 12x100mm thru-axle, flat mount disc
  • Shock
    N/A
  • Handlebar
    Giant Sport, 0mm rise, 9-degree back sweep, clamp diameter 31.8mm (XS: 640mm, S:640mm, M: 680mm, M/L: 680mm, L: 680mm, XL: 680mm)
  • Grips
    Giant ErgoContact
  • Stem
    Giant Contact, 8-degree (XS: 70mm, S: 80mm, M: 90mm, M/L: 100mm, L: 100mm, XL: 110mm)
  • Seatpost
    Giant D-Fuse, alloy, 350mm
  • Saddle
    Giant ErgoContact
  • Pedals
    N/A
  • Shifters
    Shimano CUES U6000 10-speed, SL-U60010-R
  • Front Derailleur
    N/A
  • Rear Derailleur
    Shimano CUES U6000 10-speed
  • Brakes
    Tektro HD-M3110, Giant MPH rotors [F]160mm, [R]160mm
  • Brake Levers
    Tektro HD-M3110
  • Cassette
    Shimano CUES Linkglide, CS-LG400-10, 11-48T
  • Chain
    KMC X11 with Missing Link
  • Crankset
    FSA Omega AGX+, 42T (XS: 170mm, S: 170mm, M: 170mm, M/L: 172.5mm, L: 172.5mm, XL: 172.5mm)
  • Bottom Bracket
    SRAM Dub press-fit
  • Rims
    Giant S-X2 Disc 700C Wheelset, 25mm inner rim width
  • Hubs
    Giant alloy, 12mm thru-axle
  • Spokes
    Sapim
  • Tyres
    Maxxis Re-Fuse 60TPI, wirebead, tubeless, 700x40c
  • Extras
    tubeless prepared, 42mm max tyre size, double chain ring 50/34T, single chain ring 42T

*All specifications and prices listed are subject to change without notice.

    Sizing Guide and Geometry

    Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
    Available sizes may vary by country.

    Fastroad Advanced AR
    		XS S M ML L XL
    A SEAT TUBE LENGTH (mm) 435 455 475 495 525 555
    B SEAT TUBE ANGLE 73.5° 73.5° 73.5° 73.0° 73.0° 73.0°
    C TOP TUBE LENGTH (mm) 545 560 575 590 610 630
    D HEAD TUBE LENGTH (mm) 110 130 155 175 200 225
    E HEAD TUBE ANGLE 70.5° 70.5° 71.0° 71.0° 71.5° 71.5°
    F FORK RAKE (mm) 50 50 50 50 50 50
    G TRAIL (mm) 73.7 73.7 70.4 70.4 67.1 67.1
    H WHEELBASE (mm) 1031 1047 1058 1069 1084 1105
    I CHAIN STAY LENGTH (mm) 435 435 435 435 435 435
    J BOTTOM BRACKET DROP (mm) 75 75 75 75 75 75
    K STACK (mm) 533 552 578 597 623 646
    L REACH (mm) 387 396 404 407 419 432
    M STAND OVER HEIGHT (mm) 718 736 756 773 800 826
    O STEM LENGTH (mm) 70 80 90 90 100 110
    P CRANK LENGTH (mm) 170 170 170 172.5 172.5 172.5
    Q WHEEL SIZE 700C 700C 700C 700C 700C 700C
    *All measurements shown are in millimetres unless otherwise stated.
